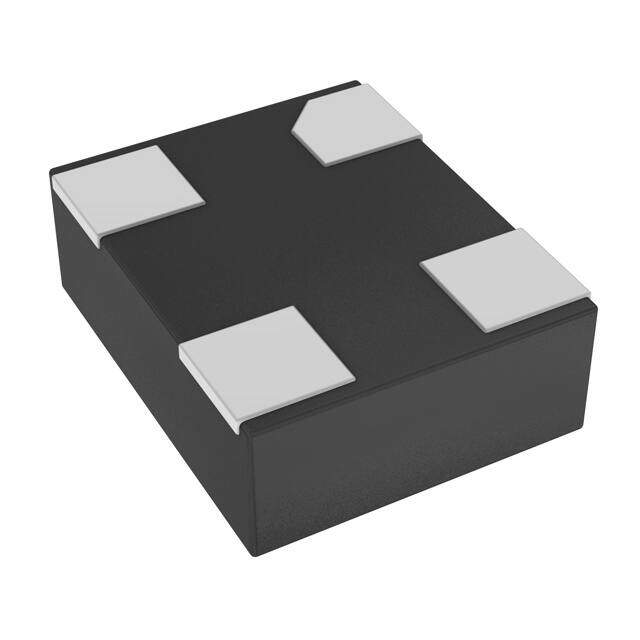

DSC1001CE1-003.5712
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
MEMS OSC XO 3.5120MHZ CMOS SMD
PDF
/
Inventory: 3555
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q100
RoHS Status ROHS3 Compliant
Dimensions
Width 2.4892mm
Length 3.2004mm
Height Seated (Max) 0.035 0.90mm
Height 889μm
Technical
Max Supply Current 6.3mA
Current - Supply (Disable) (Max) 15μA
Current - Supply (Max) 6.3mA
Base Resonator MEMS
Function Standby (Power Down)
Output CMOS
Frequency Stability ±50ppm
Frequency 3.512MHz
Voltage - Supply 1.8V~3.3V
Min Operating Temperature -20°C
Max Operating Temperature 70°C
Type XO (Standard)
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Series DSC1001
Packaging Tube
Operating Temperature -20°C~70°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
