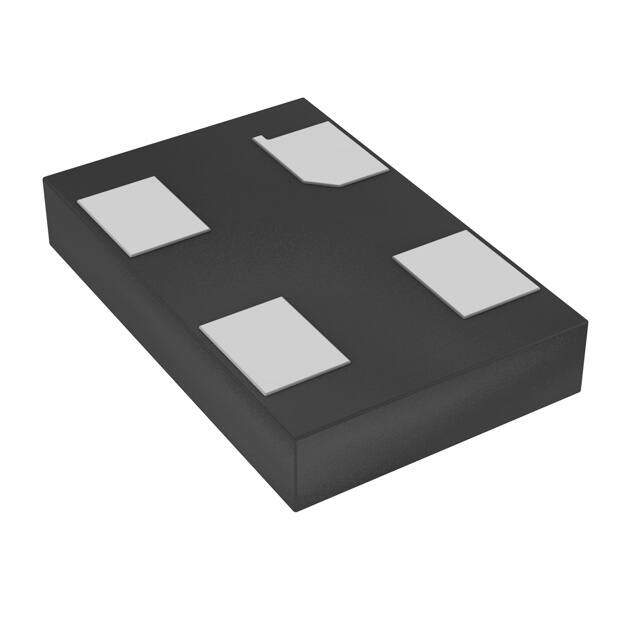

DSC1001BI5-033.3330T
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
MEMS OSC XO 33.3330MHZ CMOS SMD
PDF
/
Inventory: 1706
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q100
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.035 0.90mm
Height 889μm
Technical
Max Supply Current 7.2mA
Load Capacitance 15pF
Current - Supply (Disable) (Max) 15μA
Symmetry-Max 55/45%
Fall Time-Max 2ns
Rise Time-Max 2ns
Operating Frequency 33.333MHz
Physical Dimension 5.0mm x 3.2mm x 0.85mm
Base Resonator MEMS
Function Standby (Power Down)
Output CMOS
Frequency Stability ±10ppm
Frequency 33.333MHz
Supply Voltage 3.3V
Voltage - Supply 1.8V~3.3V
Type XO (Standard)
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Series DSC1001
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Standard, Surface Mount
