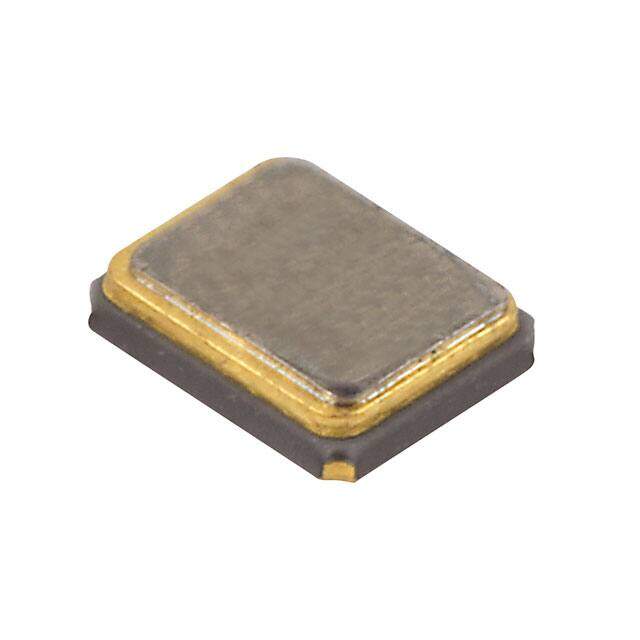

LFTVXO070168REEL
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC VCTCXO 19.2000MHZ SNWV
PDF
/
Inventory: 3648
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Surface Mount YES
Technical
Operating Temperature -30°C~85°C
Packaging Tape & Reel (TR)
Series IQXT-270-10
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type VCTCXO
Additional Feature TR
Voltage - Supply 2.85V
Supply Voltage 2.85V
Frequency 19.2MHz
Frequency Stability ±500ppb
Output Clipped Sine Wave
Base Resonator Crystal
Current - Supply (Max) 1.5mA
Physical Dimension 2.05mm x 1.65mm x 0.8mm
Operating Frequency 19.2MHz
Control Voltage-Max 2.4V
Control Voltage-Min 0.4V
Dimensions
Height Seated (Max) 0.031 0.80mm
Compliance
RoHS Status ROHS3 Compliant
