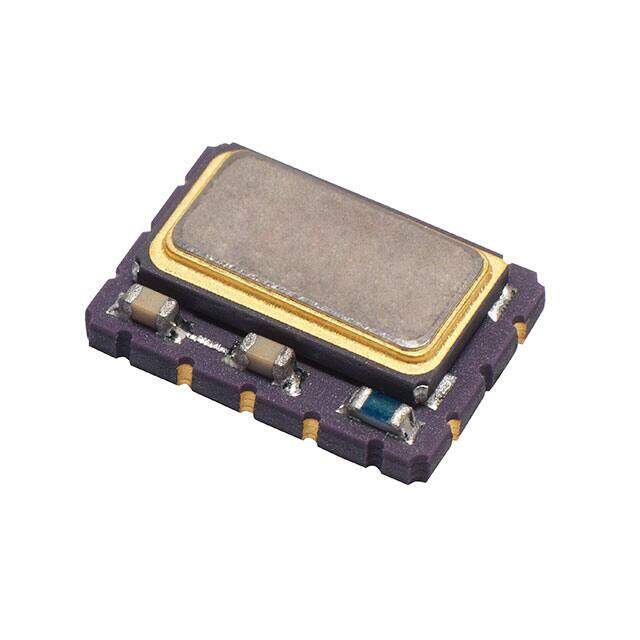

LFPTXO000068BULK
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD Module
Category Crystals, Oscillators, Resonators / Oscillators
Description
Oscillator TCXO 20MHz ?0.28ppm (Stability) 15pF HCMOS 55% 3.3V 10-Pin SMD Bulk
PDF
/
Buying Options
Total Price: USD $117.35
Unit Price: USD $117.349628
≥1 USD $117.349628
≥200 USD $46.823266
≥500 USD $45.258289
≥1000 USD $44.486304
Inventory: 1140
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.089 2.25mm
Technical
Symmetry-Max 45/55%
Fall Time-Max 9ns
Rise Time-Max 9ns
Operating Frequency 20MHz
Physical Dimension 7.0mm x 5.0mm x 2.25mm
Current - Supply (Max) 6mA
Base Resonator Crystal
Function Enable/Disable
Output HCMOS
Frequency Stability ±320ppb
Frequency 20MHz
Depth 5mm
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type TCXO
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series E3179LF
Packaging Strip
Operating Temperature -5°C~80°C
Physical
Number of Pins 10
Surface Mount YES
Package / Case 10-SMD Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
