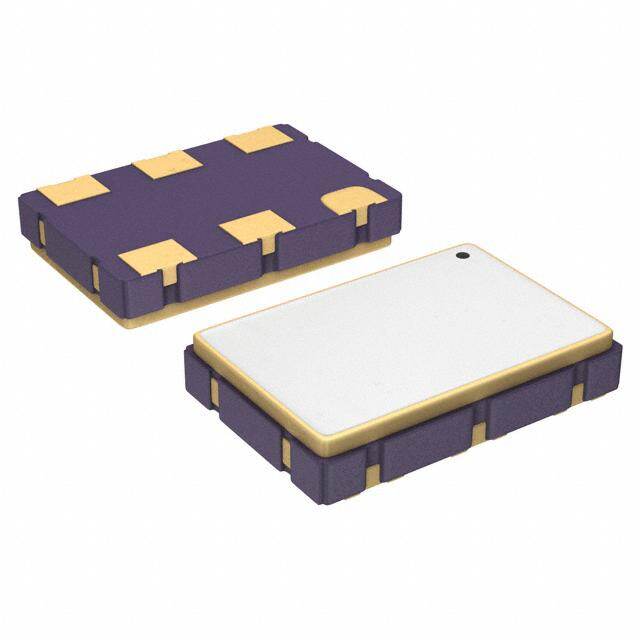

FXO-PC735-27
RoHS
/
Package /
Category Crystals, Oscillators, Resonators / Oscillators
Description
2007 Non-RoHS Compliant LVPECL SURFACE MOUNT crystal oscillator 55/45% 50OHM 70C 0.4ns
PDF
/
Inventory: 4209
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Technical
Frequency Adjustment-Mechanical NO
Output Load 50 OHM
Oscillator Type LVPECL
Supply Voltage-Min (Vsup) 3.135V
Supply Voltage-Max (Vsup) 3.465V
Symmetry-Max 55/45%
Fall Time-Max 0.4ns
Rise Time-Max 0.4ns
Operating Frequency 27MHz
Operating Temperature (Min) -20°C
Physical Dimension 7.5mm x 5.2mm x 1.4mm
Operating Temperature (Max) 70°C
Frequency Stability 50%
Supply Voltage 3.3V
Additional Feature TRI-STATE; ENABLE/DISABLE FUNCTION; COMPLIMENTARY OUTPUT; TR, 7/10 INCH
ECCN Code EAR99
Published 2007
Physical
Mounting Feature SURFACE MOUNT
Surface Mount YES
