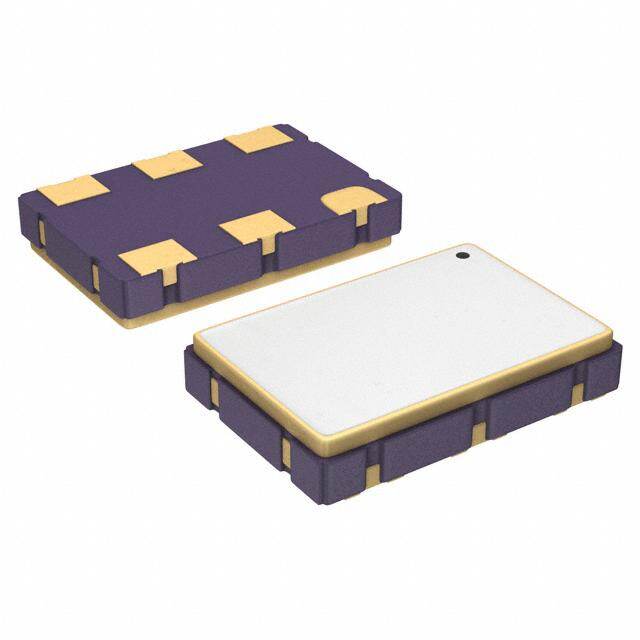

FXO-HC730-55 image
Favorite
FXO-HC730-55 image
Favorite
RoHS
/
Package /
Category Crystals, Oscillators, Resonators / Oscillators
Description Lead Free 2007 Non-RoHS Compliant Gold (Au) - with Nickel (Ni) barrier crystal oscillator 55/45% 15pF 70C 3ns
PDF
/
Inventory: 6408
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status Non-RoHS Compliant

Technical

Frequency Adjustment-Mechanical NO
Output Load 15 pF
Oscillator Type HCMOS
Supply Voltage-Min (Vsup) 3.135V
Supply Voltage-Max (Vsup) 3.465V
Symmetry-Max 55/45%
Fall Time-Max 3ns
Rise Time-Max 3ns
Operating Frequency 55MHz
Operating Temperature (Min) -20°C
Physical Dimension 7.5mm x 5.2mm x 1.4mm
Operating Temperature (Max) 70°C
Frequency Stability 100%
Supply Voltage 3.3V
Additional Feature TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7 INCH
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
JESD-609 Code e4
Published 2007

Physical

Mounting Feature SURFACE MOUNT
Surface Mount YES
