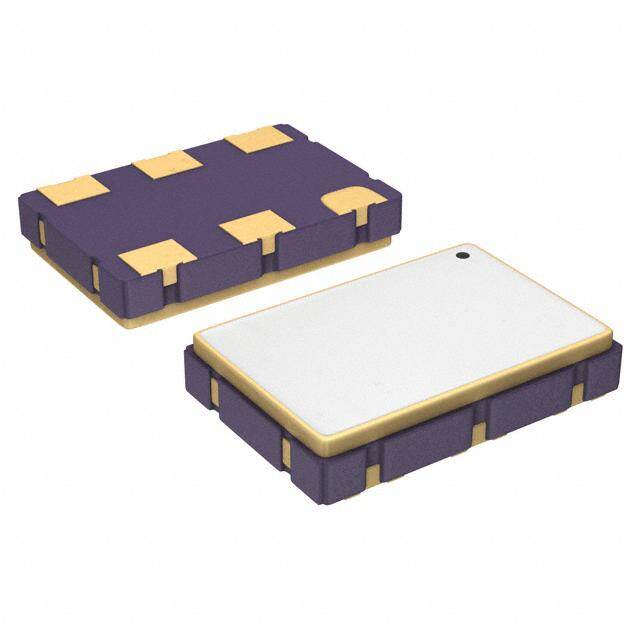

FXO-HC735-40
RoHS
/
Package CSMD
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC XO 40.000MHZ HCMOS SMD
PDF
/
Inventory: 8697
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case CSMD
Number of Pins 6
Technical
Packaging Cut Tape
JESD-609 Code e4
Pbfree Code yes
ECCN Code EAR99
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Additional Feature TAPE AND REEL
Supply Voltage 3.3V
Depth 5.2mm
Frequency 40MHz
Frequency Stability 50 ppm
Physical Dimension 7.5mm x 5.2mm x 1.4mm
Operating Frequency 40MHz
Operating Supply Voltage 3.3V
Rise Time-Max 3ns
Fall Time-Max 3ns
Symmetry-Max 55/45%
Max Supply Voltage 3.465V
Min Supply Voltage 3.135V
Oscillator Type HCMOS
Load Capacitance 30pF
Max Supply Current 35mA
Frequency Tolerance 0.005%
Output Load 15 pF
Dimensions
Height 1.397mm
Length 7.5mm
Width 5.207mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
