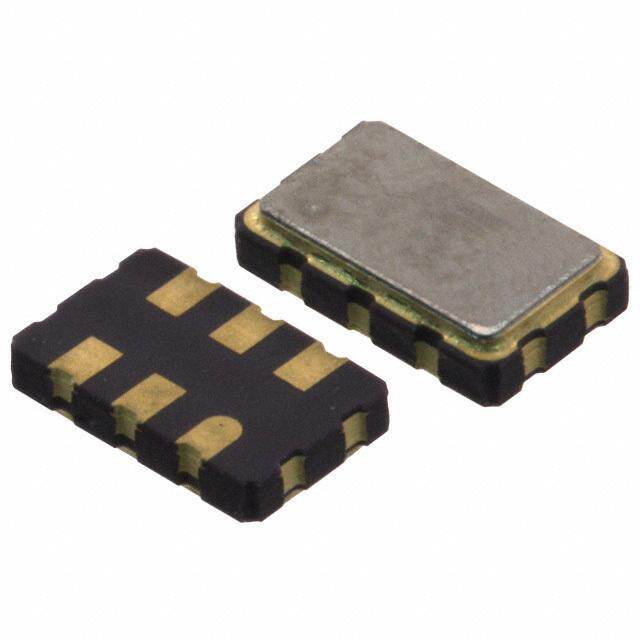

FXO-HC536R-20
RoHS
/
Package SMD/SMT
Category Crystals, Oscillators, Resonators / Oscillators
Description
20.000MHZ HCMOS SMD Oscillator
PDF
/
Inventory: 1649
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SMD/SMT
Number of Pins 4
Technical
Packaging Bulk
JESD-609 Code e4
Number of Terminations 4
ECCN Code EAR99
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Additional Feature TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7/10 INCH
Subcategory Other Oscillators
Supply Voltage 3.3V
Frequency 20MHz
Frequency Stability 25 ppm
Operating Frequency 20MHz
Operating Supply Voltage 3.3V
Rise Time-Max 3ns
Fall Time-Max 3ns
Max Supply Voltage 3.465V
Min Supply Voltage 3.135V
Oscillator Type HCMOS
Load Capacitance 15pF
Max Supply Current 32mA
Frequency Tolerance 0.0025%
Dimensions
Height 1.397mm
Length 5.1562mm
Width 3.3528mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
