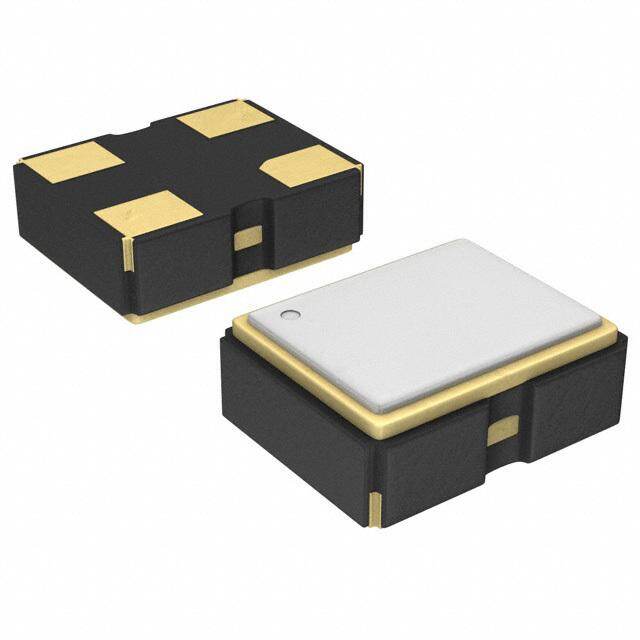

FXO-HC535-49.9008
RoHS
/
Package SMD/SMT
Category Crystals, Oscillators, Resonators / Oscillators
Description
RoHS Compliant Gold (Au) - with Nickel (Ni) barrier HCMOS Surface Mount crystal oscillator 55/45% 15pF 70C 3ns
PDF
/
Inventory: 1740
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SMD/SMT
Number of Pins 6
Technical
Packaging Tape & Reel
JESD-609 Code e4
Number of Terminations 4
ECCN Code EAR99
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Additional Feature TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7/10 INCH
Subcategory Other Oscillators
Supply Voltage 3.3V
Frequency 49.9008MHz
Frequency Stability 50 ppm
Physical Dimension 5.15mm x 3.35mm x 1.4mm
Operating Frequency 49.9008MHz
Operating Supply Voltage 3.3V
Rise Time-Max 3ns
Fall Time-Max 3ns
Symmetry-Max 55/45%
Oscillator Type HCMOS
Load Capacitance 30pF
Max Supply Current 35mA
Output Load 15 pF
Dimensions
Height 1.397mm
Length 5.1562mm
Width 3.3528mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
