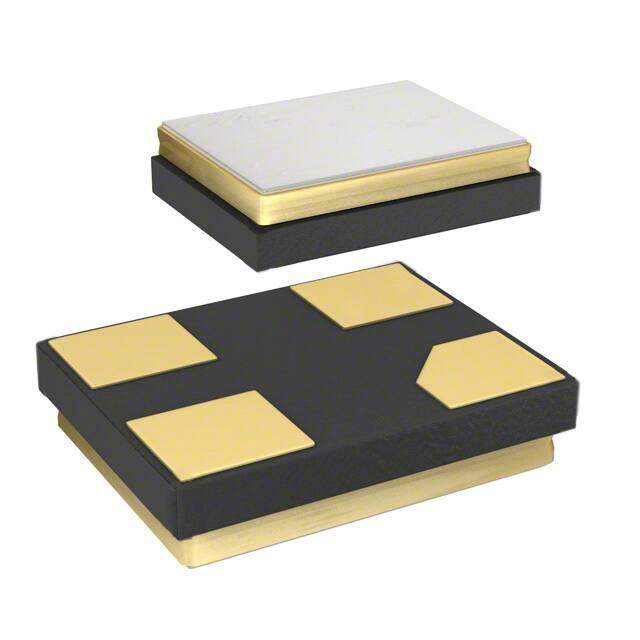

FO1HSCBF12.0-T3
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 12.0000MHZ HCMOS SMD
PDF
/
Inventory: 3856
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.031 0.80mm
Technical
Current - Supply (Disable) (Max) 10μA
Symmetry-Max 55/45%
Fall Time-Max 10ns
Rise Time-Max 10ns
Operating Frequency 12MHz
Physical Dimension 2.0mm x 1.6mm x 0.75mm
Current - Supply (Max) 5mA
Base Resonator Crystal
Function Standby (Power Down)
Output HCMOS
Frequency Stability ±50ppm
Frequency 12MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Additional Feature ENABLE/DISABLE FUNCTION; TR, 7 INCH
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.083Lx0.067W 2.10mmx1.70mm
Series F135
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C
Physical
Surface Mount YES
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
