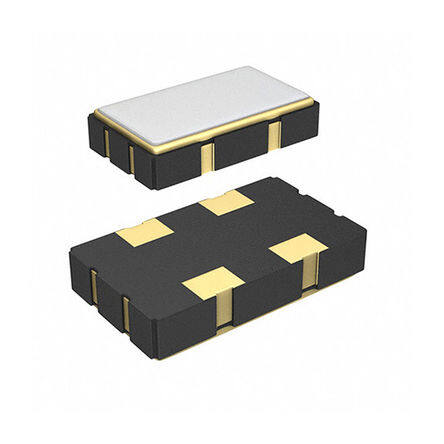

X1G004451002812
RoHS
/
Package /
Category Crystals, Oscillators, Resonators / Oscillators
Description
CMOS 2015 Non-RoHS Compliant CMOS crystal oscillator 55/45% 15pF 85C 3.5ns
PDF
/
Inventory: 4595
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Surface Mount YES
Mounting Feature SURFACE MOUNT
Technical
Published 2015
Number of Terminations 4
Additional Feature STANDBY; ENABLE/DISABLE FUNCTION
Technology CMOS
Frequency Stability 50%
Operating Temperature (Max) 85°C
Physical Dimension 5mm x 3.2mm x 1.1mm
Operating Temperature (Min) -40°C
Operating Frequency 12MHz
Rise Time-Max 3.5ns
Fall Time-Max 3.5ns
Symmetry-Max 55/45%
Supply Voltage-Max (Vsup) 3.63V
Supply Voltage-Min (Vsup) 1.6V
Oscillator Type CMOS
Supply Current-Max 1.8mA
Output Load 15 pF
Frequency Adjustment-Mechanical NO
Compliance
RoHS Status Non-RoHS Compliant
