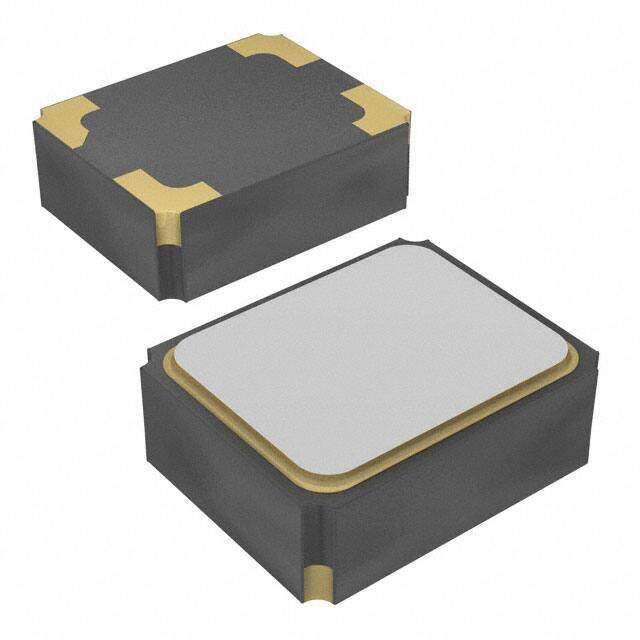

TG2016SBN 27.0000M-MCGNEM3
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC VCTCXO 27.0000MHZ SNWV
PDF
/
Inventory: 6486
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.031 0.80mm
Technical
Control Voltage-Min 0.4V
Control Voltage-Max 2.4V
Operating Frequency 27MHz
Physical Dimension 2.0mm x 1.6mm x 0.73mm
Current - Supply (Max) 1.5mA
Base Resonator Crystal
Output Sine Wave
Frequency Stability ±500ppb
Frequency 27MHz
Supply Voltage 2.8V
Voltage - Supply 2.8V~3.3V
Additional Feature TR
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type VCTCXO
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Series TG2016SBN
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
