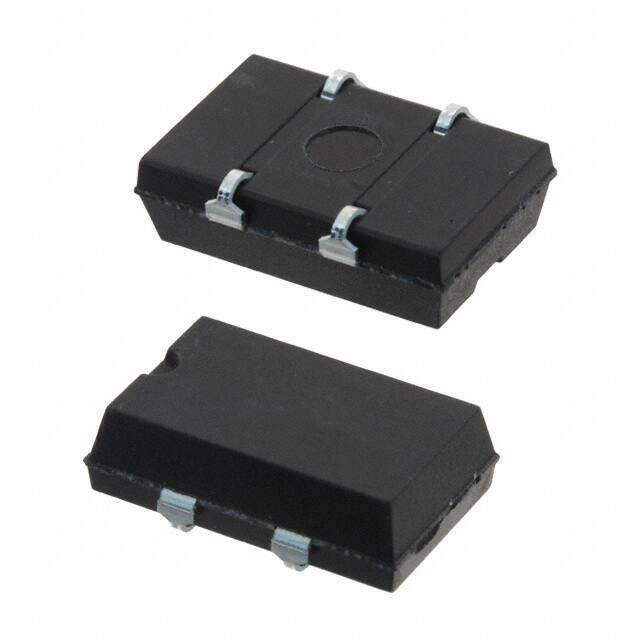

SG-615PTJ 32.7680MC0:ROHS
RoHS
RoHS compliant
RoHS compliantPackage 4-SOJ, 5.08mm pitch
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 32.7680MHZ TTL SMD
PDF
/
Inventory: 5527
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 4-SOJ, 5.08mm pitch
Technical
Operating Temperature -20°C~70°C
Packaging Tape & Reel (TR)
Series SG-615
Size / Dimension 0.551Lx0.341W 14.00mmx8.65mm
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Voltage - Supply 5V
Frequency 32.768MHz
Frequency Stability ±100ppm
Output TTL
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 35mA
Current - Supply (Disable) (Max) 28mA
Dimensions
Height Seated (Max) 0.185 4.70mm
Compliance
RoHS Status ROHS3 Compliant
