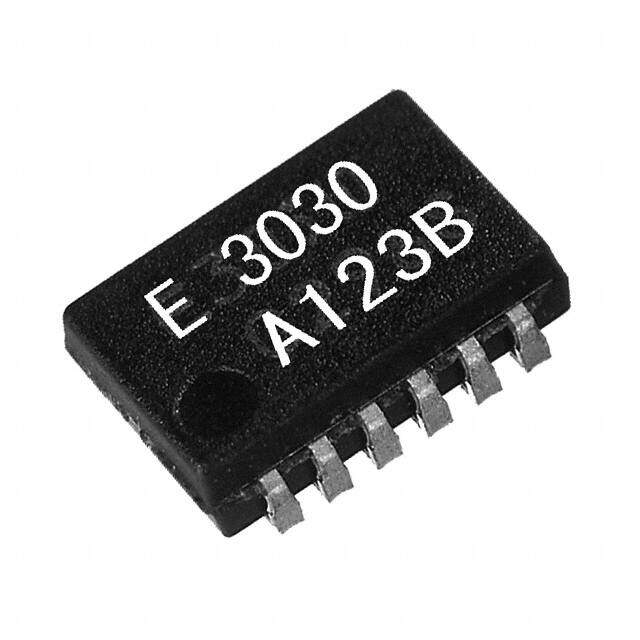

SG-3030LC 32.7680KB3: PURE SN
RoHS
RoHS compliant
RoHS compliantPackage 12-SOJ, 0.50mm pitch
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 32.7680KHZ CMOS SMD
PDF
/
Inventory: 5160
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Surface Mount
Package / Case 12-SOJ, 0.50mm pitch
Technical
Operating Temperature -20°C~70°C
Packaging Tape & Reel (TR)
Series SG-3030
Size / Dimension 0.142Lx0.094W 3.60mmx2.40mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Voltage - Supply 1.5V~5.5V
Frequency 32.768kHz
Frequency Stability -120ppm +10ppm
Output CMOS
Function Amplitude Control
Base Resonator Crystal
Current - Supply (Max) 2μA
Dimensions
Height Seated (Max) 0.047 1.20mm
Compliance
RoHS Status ROHS3 Compliant
