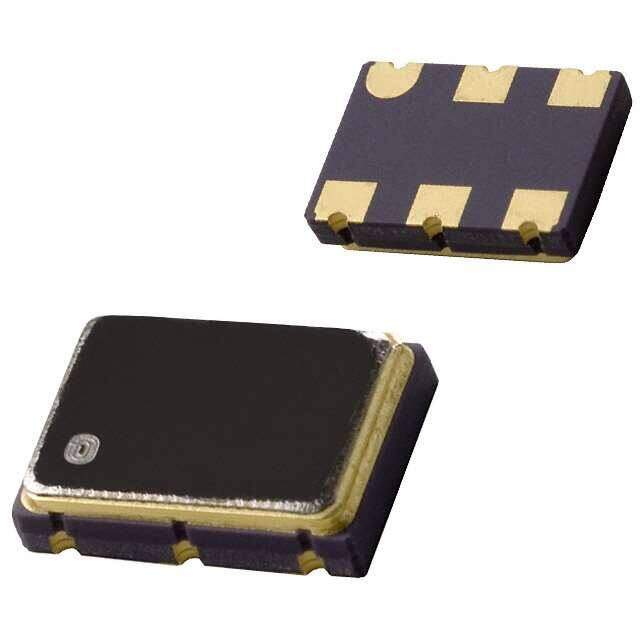

ECS-VXO-73-20.00-TR
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC VCXO 20.0000MHZ CMOS
PDF
/
Buying Options
Total Price: USD $2.31
Unit Price: USD $2.307903
≥1 USD $2.307903
≥10 USD $2.177266
≥100 USD $2.054029
≥500 USD $1.937766
≥1000 USD $1.828078
Inventory: 1146
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 5.0038mm
Length 7.0104mm
Height Seated (Max) 0.063 1.60mm
Height 1.6002mm
Technical
Frequency Tolerance 0.005%
Max Supply Current 20mA
Load Capacitance 15pF
Operating Supply Voltage 3.3V
Current - Supply (Max) 20mA
Base Resonator Crystal
Function Enable/Disable
Output CMOS
Frequency Stability ±50ppm
Frequency 20MHz
Voltage - Supply 3.3V
Min Operating Temperature -10°C
Max Operating Temperature 70°C
Type VCXO
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series ECS-VXO-73
Packaging Tape & Reel (TR)
Operating Temperature -10°C~70°C
Physical
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
