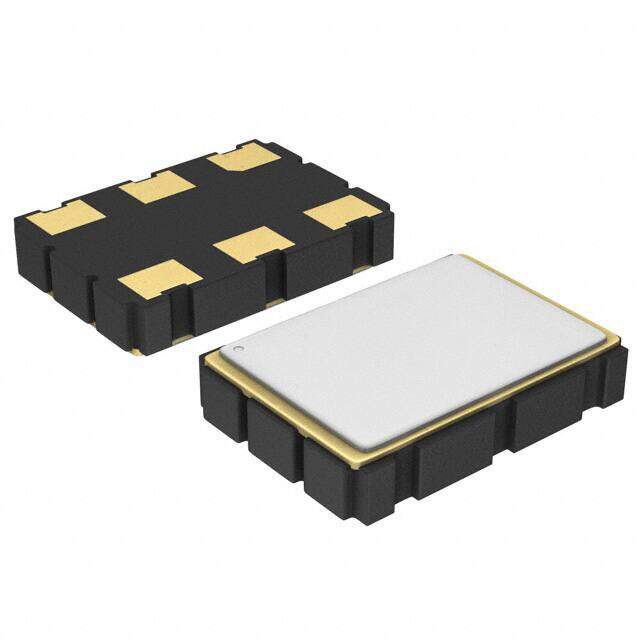

ECS-PEC33-1000-BN
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC XO 100.000MHZ PECL SMD
PDF
/
Inventory: 2593
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.067 1.70mm
Height 1.7018mm
Technical
Max Supply Current 90mA
Current - Supply (Disable) (Max) 30μA
Symmetry-Max 45/55%
Fall Time-Max 1ns
Rise Time-Max 1ns
Operating Frequency 100MHz
Physical Dimension 7.0mm x 5.0mm x 1.7mm
Base Resonator Crystal
Function Enable/Disable
Output PECL
Frequency Stability ±50ppm
Frequency 100MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series ECS-PEC33
Published 2008
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
