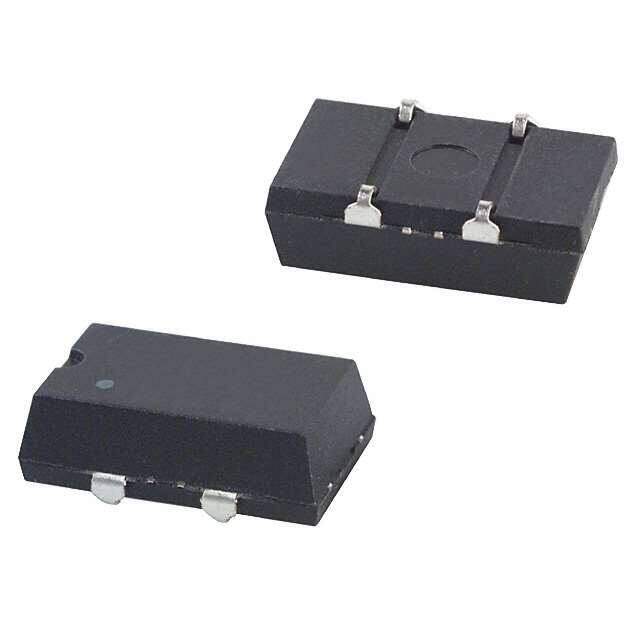

ECS-8FM-010-TR
RoHS
/
Package 4-SOJ, 5.08mm pitch
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC XO 1.000MHZ CMOS SMD
PDF
/
Inventory: 8999
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.185 4.70mm
Height 4.699mm
Technical
Frequency Tolerance 0.01%
Max Supply Current 23mA
Symmetry-Max 60/40%
Fall Time-Max 8ns
Rise Time-Max 8ns
Operating Frequency 1MHz
Physical Dimension 14.0mm x 9.8mm x 4.7mm
Base Resonator Crystal
Function Enable/Disable
Output CMOS, TTL
Frequency Stability ±200ppm
Frequency 1MHz
Supply Voltage 5V
Voltage - Supply 5V
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.551Lx0.341W 14.00mmx8.65mm
Series ECS-8F
Published 2000
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SOJ, 5.08mm pitch
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
