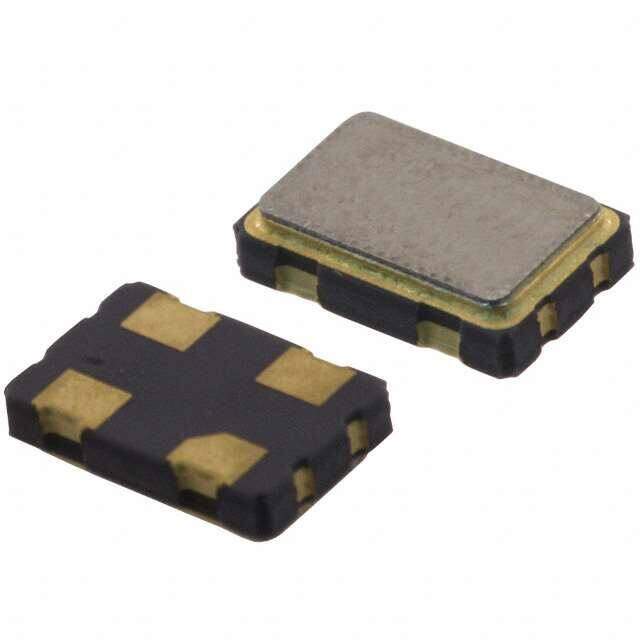

ECS-3963-040-BN-TR
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC XO 4.000MHZ HCMOS SMD
PDF
/
Buying Options
Total Price: USD $1.36
Unit Price: USD $1.364
≥1 USD $1.364
≥10 USD $1.30768
≥100 USD $1.277056
≥500 USD $1.094544
≥1000 USD $1.064166
Inventory: 1154
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.051 1.30mm
Height 1.2954mm
Technical
Frequency Tolerance 0.005%
Max Supply Current 8mA
Load Capacitance 15pF
Power Supplies 3.3V
Operating Frequency 4MHz
Qualification Status Not Qualified
Base Resonator Crystal
Function Enable/Disable
Output HCMOS
Frequency Stability ±50ppm
Frequency 4MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Subcategory Other Oscillators
Type XO (Standard)
Termination SMD/SMT
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Series ECS-3963-BN
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
