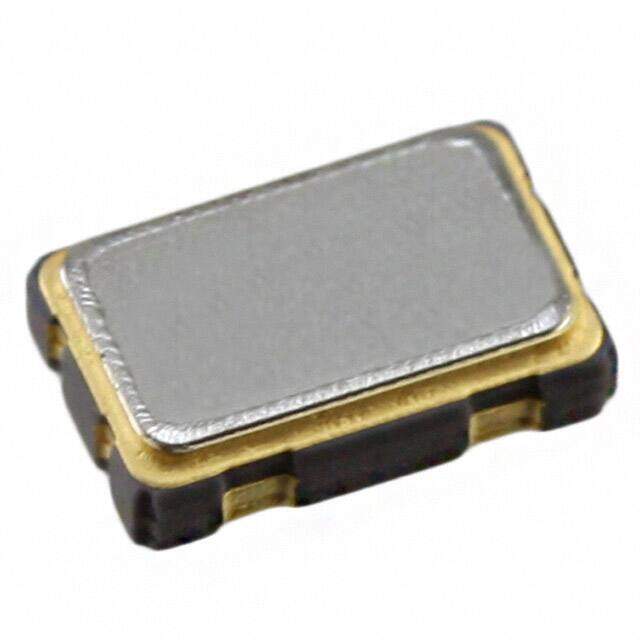

ECS-3961-080-AU-TR
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 8.0000MHZ HCMOS SMD
PDF
/
Buying Options
Total Price: USD $1.46
Unit Price: USD $1.4608
≥1 USD $1.4608
≥10 USD $1.3948
≥100 USD $1.36224
≥500 USD $1.167672
≥1000 USD $1.135235
Inventory: 1473
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Series ECS-3961
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination SMD/SMT
Type XO (Standard)
Subcategory Other Oscillators
Voltage - Supply 5V
Supply Voltage 5V
Frequency 8MHz
Frequency Stability ±100ppm
Output HCMOS
Function Enable/Disable
Base Resonator Crystal
Qualification Status Not Qualified
Operating Frequency 8MHz
Operating Supply Voltage 5V
Power Supplies 5V
Load Capacitance 15pF
Max Supply Current 15mA
Dimensions
Height 1.2954mm
Height Seated (Max) 0.051 1.30mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
