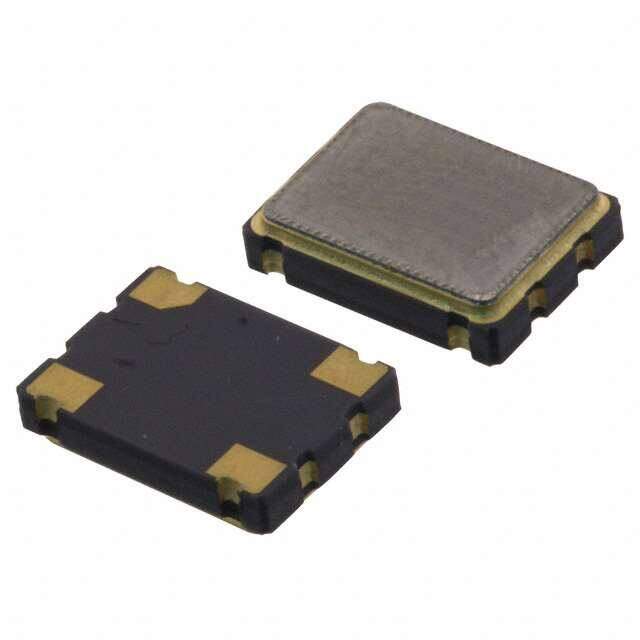

ECS-3953M-040-BN-TR
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 4.0000MHZ HCMOS SMD
PDF
/
Buying Options
Total Price: USD $1.84
Unit Price: USD $1.8392
≥1 USD $1.8392
≥10 USD $1.75824
≥100 USD $1.717232
≥500 USD $1.471888
≥1000 USD $1.430968
Inventory: 1139
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.067 1.70mm
Height 1.7018mm
Technical
Frequency Tolerance 0.005%
Max Supply Current 15mA
Load Capacitance 15pF
Symmetry-Max 40/60%
Fall Time-Max 5ns
Rise Time-Max 5ns
Operating Supply Voltage 3.3V
Operating Frequency 4MHz
Physical Dimension 7.0mm x 5.0mm x 1.7mm
Qualification Status Not Qualified
Base Resonator Crystal
Function Enable/Disable
Output HCMOS
Frequency Stability ±50ppm
Frequency 4MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Subcategory Other Oscillators
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type XO (Standard)
Termination SMD/SMT
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series ECS-3953M-BN
Published 2002
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 15 Weeks
