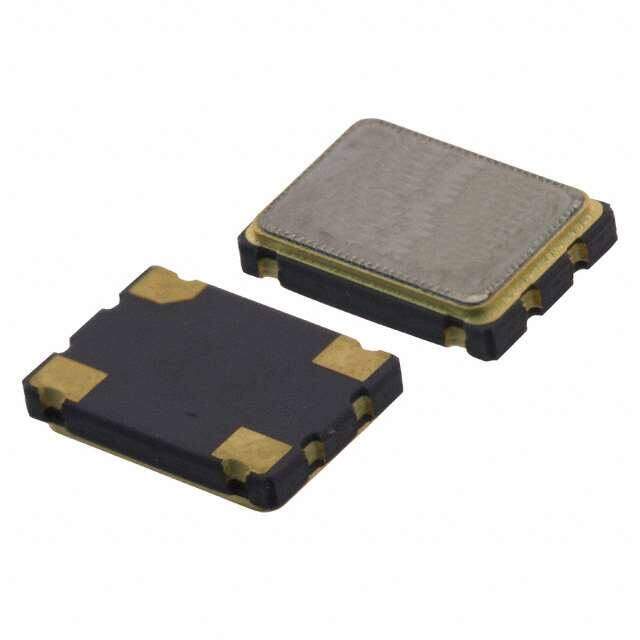

ECS-3951M-200-B-TR
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC XO 20.000MHZ HCMOS SMD
PDF
/
Buying Options
Total Price: USD $1.5
Unit Price: USD $1.496
≥1 USD $1.496
≥10 USD $1.43352
≥100 USD $1.399904
≥500 USD $1.19988
≥1000 USD $1.166546
Inventory: 462
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Technical
Operating Temperature -10°C~70°C
Packaging Tape & Reel (TR)
Published 2001
Series ECS-3951M
Size / Dimension 0.295Lx0.197W 7.50mmx5.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Max Operating Temperature 70°C
Min Operating Temperature -10°C
Voltage - Supply 5V
Frequency 20MHz
Frequency Stability ±50ppm
Output HCMOS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 20mA
Max Supply Current 20mA
Frequency Tolerance 0.005%
Dimensions
Height 1.7526mm
Height Seated (Max) 0.069 1.75mm
Length 7.493mm
Width 5.0038mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
