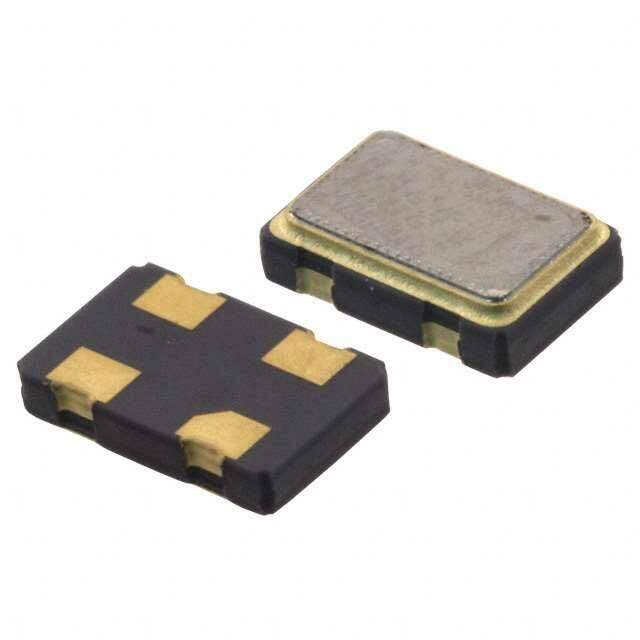

ECS-3518-040-B-TR
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC XO 4.000MHZ HCMOS SMD
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.0856
≥1 USD $2.0856
≥10 USD $2.03456
≥100 USD $1.937584
≥500 USD $1.695408
≥1000 USD $1.646938
Inventory: 855
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.051 1.30mm
Height 1.2954mm
Technical
Frequency Tolerance 0.005%
Max Supply Current 6mA
Load Capacitance 30pF
Operating Supply Voltage 1.8V
Operating Frequency 4MHz
Qualification Status Not Qualified
Base Resonator Crystal
Function Enable/Disable
Output HCMOS
Frequency Stability ±50ppm
Frequency 4MHz
Supply Voltage 1.8V
Voltage - Supply 1.8V
Subcategory Other Oscillators
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type XO (Standard)
Termination SMD/SMT
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Series ECS-3518
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature 0°C~70°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
