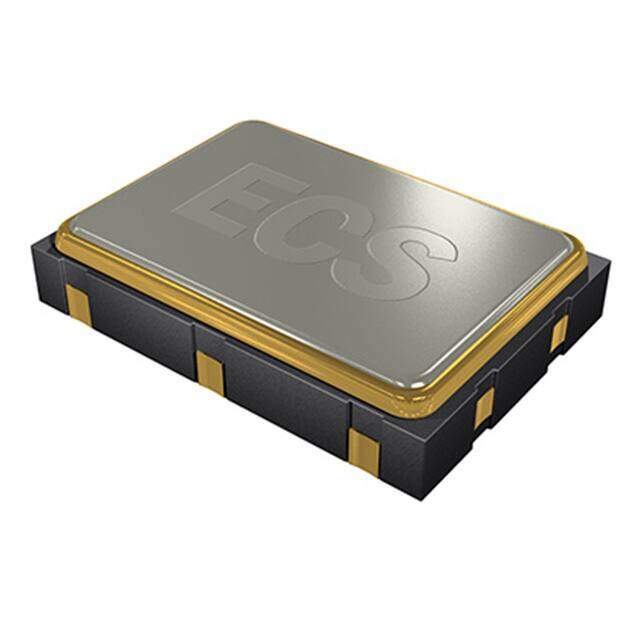

ECS-3225S30-100-FN-TR image
Favorite
ECS-3225S30-100-FN-TR image
Favorite

ECS-3225S30-100-FN-TR

ECS Inc.
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description XTAL OSC XO 10.0000MHZ HCMOS SMD
PDF
/
Inventory: 3149
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Surface Mount YES

Technical

Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2017
Series ECS-3225S
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Voltage - Supply 3V
Supply Voltage 3V
Frequency 10MHz
Frequency Stability ±10ppm
Output HCMOS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 7mA
Physical Dimension 3.2mm x 2.5mm x 0.9mm
Operating Frequency 10MHz
Rise Time-Max 5ns
Fall Time-Max 5ns
Symmetry-Max 45/55%
Current - Supply (Disable) (Max) 10μA

Dimensions

Height Seated (Max) 0.039 1.00mm

Compliance

RoHS Status ROHS3 Compliant
