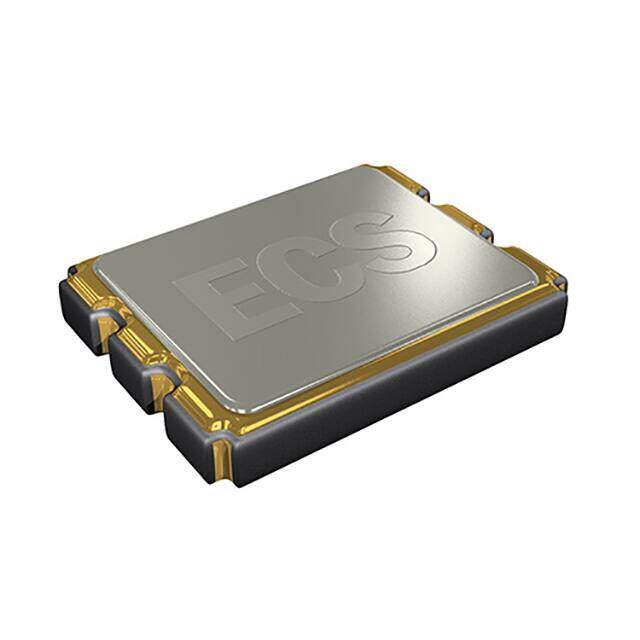

ECS-2520SMV-200-GP-TR
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 20MHZ HCMOS SMD
PDF
/
Inventory: 1359
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.035 0.90mm
Technical
Current - Supply (Disable) (Max) 10μA
Current - Supply (Max) 10mA
Base Resonator Crystal
Function Enable/Disable
Output HCMOS
Frequency Stability ±5ppm
Frequency 20MHz
Voltage - Supply 1.62V~3.63V
Terminal Finish Gold (Au)
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series MultiVolt?ECS-2520SMV
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
