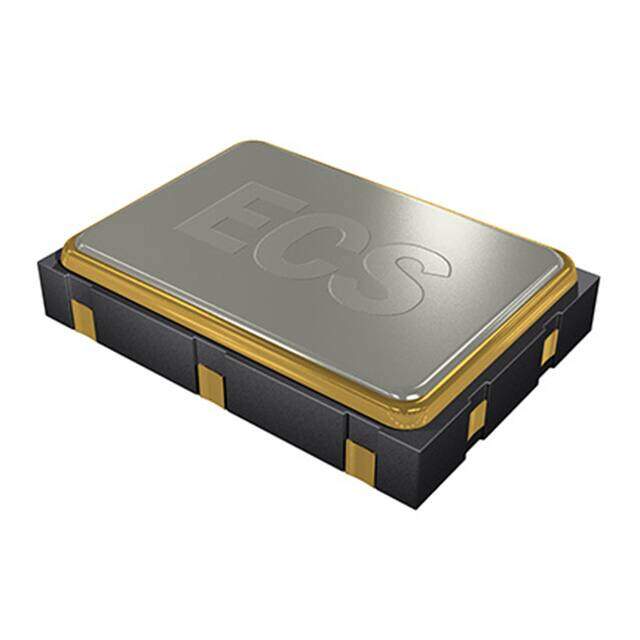

ECS-2520S30-500-EN-TR
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 50.0000MHZ HCMOS SMD
PDF
/
Inventory: 1430
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.039 1.00mm
Technical
Current - Supply (Disable) (Max) 10μA
Symmetry-Max 45/55%
Fall Time-Max 5ns
Rise Time-Max 5ns
Operating Frequency 50MHz
Physical Dimension 2.5mm x 2.0mm x 0.9mm
Current - Supply (Max) 7mA
Base Resonator Crystal
Function Enable/Disable
Output HCMOS
Frequency Stability ±15ppm
Frequency 50MHz
Supply Voltage 3V
Voltage - Supply 3V
Terminal Finish Gold (Au)
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series ECS-2520S
Published 2017
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
