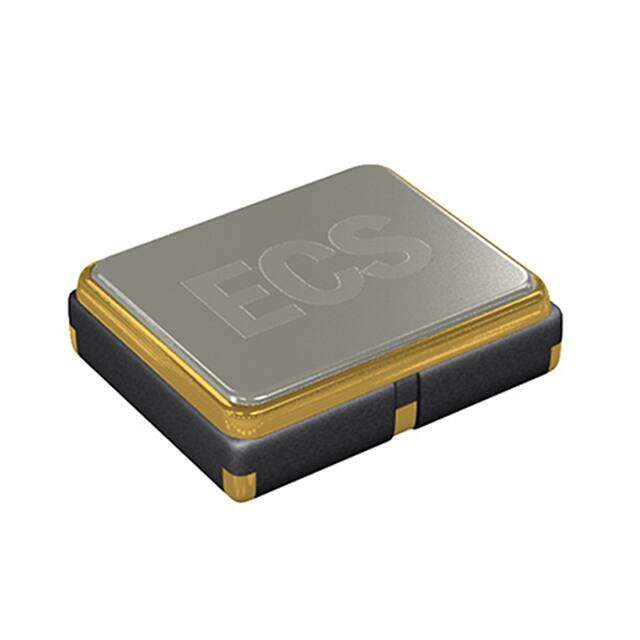

ECS-2520MV-160-CN-TR
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Osc Xo 16.000MHZ Cmos SMD
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.6468
≥100 USD $0.60456
≥500 USD $0.53416
≥1000 USD $0.506088
≥3000 USD $0.495
Inventory: 321036
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series MultiVolt? ECS-2520MV
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Type XO (Standard)
Terminal Finish Gold (Au)
Voltage - Supply 1.6V~3.6V
Frequency 16MHz
Frequency Stability ±25ppm
Output HCMOS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 6mA
Physical Dimension 2.5mm x 2.0mm x 0.8mm
Operating Frequency 16MHz
Rise Time-Max 7ns
Fall Time-Max 7ns
Symmetry-Max 45/55%
Current - Supply (Disable) (Max) 10μA
Dimensions
Height Seated (Max) 0.035 0.90mm
Compliance
RoHS Status ROHS3 Compliant
