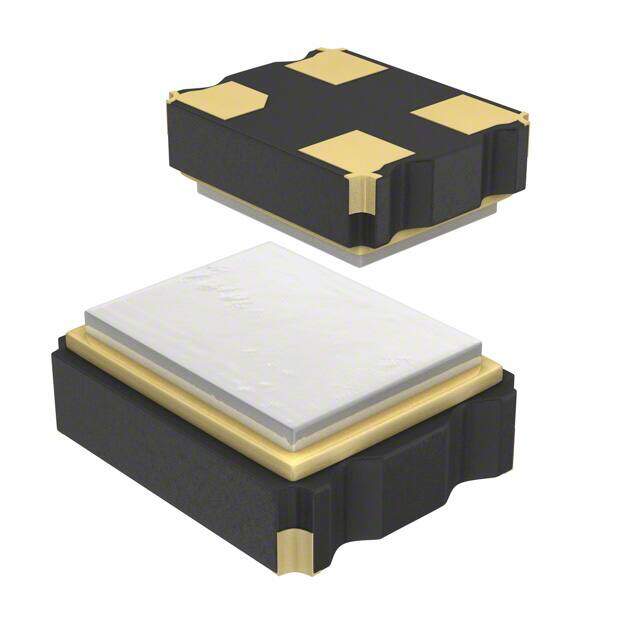

ECS-2033-035-BN
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC XO 3.579545MHZ HCMOS SMD
PDF
/
Inventory: 8977
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.035 0.90mm
Height 889μm
Technical
Max Supply Current 7mA
Current - Supply (Disable) (Max) 10μA
Power Supplies 3.3V
Symmetry-Max 45/55%
Fall Time-Max 10ns
Rise Time-Max 10ns
Operating Frequency 3.579545MHz
Physical Dimension 2.5mm x 2.0mm x 0.9mm
Qualification Status Not Qualified
Base Resonator Crystal
Function Enable/Disable
Output CMOS
Frequency Stability ±50ppm
Frequency 3.579545MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Subcategory Other Oscillators
Additional Feature TRI-STATE; DISABLE FUNCTION; TAPE AND REEL
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type XO (Standard)
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Series ECS-2033
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
