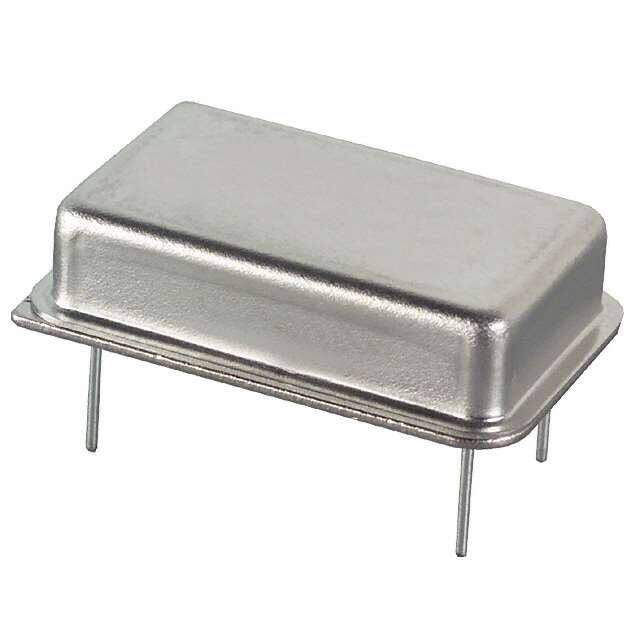

ECS-100A-180 image
Favorite
ECS-100A-180 image
Favorite

ECS-100A-180

ECS Inc.
RoHS
/
Package 14-DIP, 4 Leads (Full Size, Metal Can)
Category Crystals, Oscillators, Resonators / Oscillators
Description XTAL OSC XO 18.0000MHZ TTL TH
PDF
/
Inventory: 8510
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case 14-DIP, 4 Leads (Full Size, Metal Can)

Technical

Operating Temperature 0°C~70°C
Packaging Bulk
Published 1999
Series ECS-100
Size / Dimension 0.821Lx0.520W 20.86mmx13.20mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type XO (Standard)
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Voltage - Supply 5V
Frequency 18MHz
Frequency Stability ±100ppm
Output TTL
Base Resonator Crystal
Current - Supply (Max) 30mA
Operating Supply Voltage 5V
Max Supply Current 30mA
Frequency Tolerance 0.01%

Dimensions

Height 5.08mm
Height Seated (Max) 0.200 5.08mm
Length 20.8534mm
Width 13.208mm

Compliance

RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
