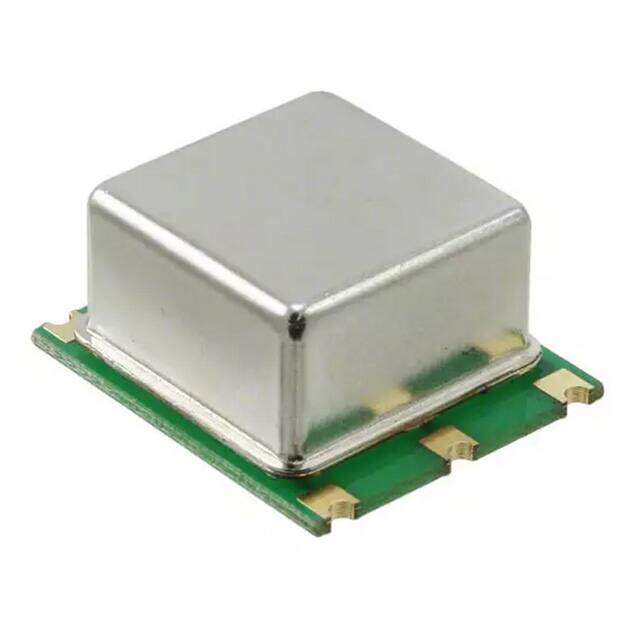

ECOC-2522-100.000-3FC
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead, 5 Leads
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC OCXO 100.0000MHZ CMOS
PDF
/
Buying Options
Total Price: USD $103.7
Unit Price: USD $103.6992
≥1 USD $103.6992
≥10 USD $99.99792
≥100 USD $98.51659
Inventory: 34
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead, 5 Leads
Surface Mount YES
Technical
Operating Temperature 0°C~50°C
Packaging Tray
Series ECOC-2522
Size / Dimension 1.000Lx0.870W 25.40mmx22.10mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type OCXO
Terminal Finish Gold (Au)
Voltage - Supply 3.3V
Supply Voltage 3.3V
Frequency 100MHz
Frequency Stability ±5ppb
Output CMOS
Base Resonator Crystal
Physical Dimension 25.4mm x 22.1mm x 12.2mm
Operating Frequency 100MHz
Control Voltage-Max 3.3V
Warm-up Power 3.6W
Input Power 1.4W
Warm-up Time-Max 3Minute
Dimensions
Height Seated (Max) 0.488 12.40mm
Compliance
RoHS Status ROHS3 Compliant
