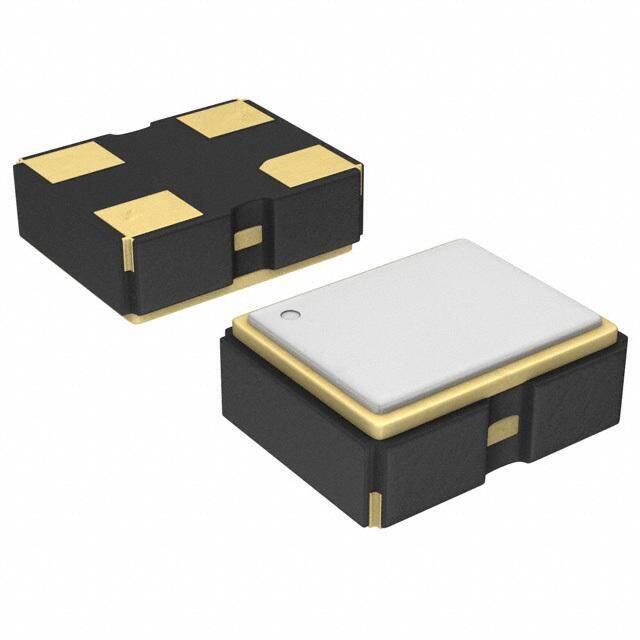

EC5945TS-3.6864M
RoHS
/
Package /
Category Crystals, Oscillators, Resonators / Oscillators
Description
Lead Free Non-RoHS Compliant Ceramic Nickel/Gold (Ni/Au) Oscillator 15pF 70C 10ns 800mum
PDF
/
Inventory: 4019
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status Non-RoHS Compliant
Dimensions
Width 2mm
Length 2.5mm
Height 800μm
Technical
Output Load 15 pF
Frequency Tolerance 0.005%
Oscillator Type LVCMOS
Supply Voltage-Min (Vsup) 1.71V
Supply Voltage-Max (Vsup) 1.89V
Fall Time-Max 10ns
Rise Time-Max 10ns
Operating Frequency 3.6864MHz
Physical Dimension 2.5mm x 2.0mm x 0.8mm
Operating Temperature (Max) 70°C
Pin Count 4
Frequency Stability 50 ppm
Frequency 3.6864MHz
Supply Voltage 1.8V
Additional Feature TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
Terminal Finish Nickel/Gold (Ni/Au)
Pbfree Code yes
JESD-609 Code e4
Physical
Material Ceramic
Number of Pins 4
Mounting Feature SURFACE MOUNT
Surface Mount YES
