EC2645TS-19.440MTR
RoHS
/
Package /
Category Crystals, Oscillators, Resonators / Oscillators
Description

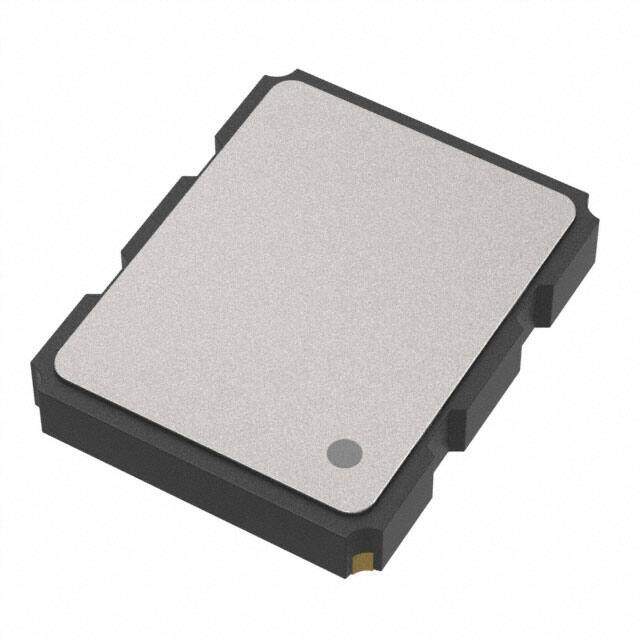

RoHS Compliant Ceramic Nickel/Gold (Ni/Au) LVCMOS Oscillator 30pF 70C 7ns 7.0mm x 5.0mm x 1.6mm
PDF
/
Inventory: 8752
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Output Load 30 pF
Frequency Tolerance 0.005%
Oscillator Type LVCMOS
Supply Voltage-Min (Vsup) 2.97V
Supply Voltage-Max (Vsup) 3.63V
Fall Time-Max 7ns
Rise Time-Max 7ns
Operating Frequency 19.44MHz
Operating Temperature (Min) -10°C
Physical Dimension 7.0mm x 5.0mm x 1.6mm
Operating Temperature (Max) 70°C
Frequency Stability 50 ppm
Frequency 19.44MHz
Reach Compliance Code compliant
Supply Voltage 3.3V
Additional Feature TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
Terminal Finish Nickel/Gold (Ni/Au)
Pbfree Code yes
JESD-609 Code e4
Physical
Material Ceramic
Number of Pins 4
Mounting Feature SURFACE MOUNT
Surface Mount YES
