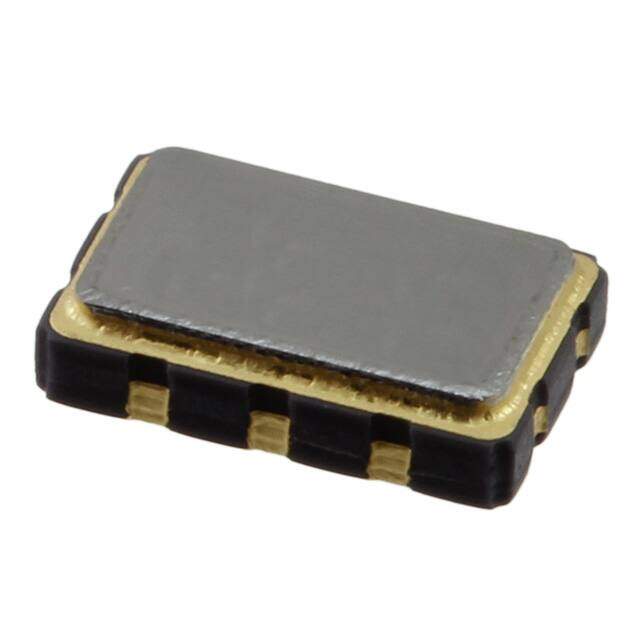

NX5041D0100.000000
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
100MHz HCSL XO (Standard) Oscillator Surface Mount 3.3V 70mA Enable/Disable
PDF
/
Buying Options
Total Price: USD $4.27
Unit Price: USD $4.268
≥1 USD $4.268
≥10 USD $4.05328
≥100 USD $3.839616
≥500 USD $3.519648
Inventory: 840
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.053 1.35mm
Height 1.3462mm
Technical
Max Supply Current 70mA
Current - Supply (Disable) (Max) 40mA
Symmetry-Max 45/55%
Fall Time-Max 0.7ns
Rise Time-Max 0.7ns
Operating Frequency 100MHz
Physical Dimension 5.0mm x 3.2mm x 1.2mm
Base Resonator Crystal
Function Enable/Disable
Output HCSL
Frequency Stability ±25ppm
Frequency 100MHz
Reach Compliance Code unknown
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Series SaRonix-eCera? NX
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
