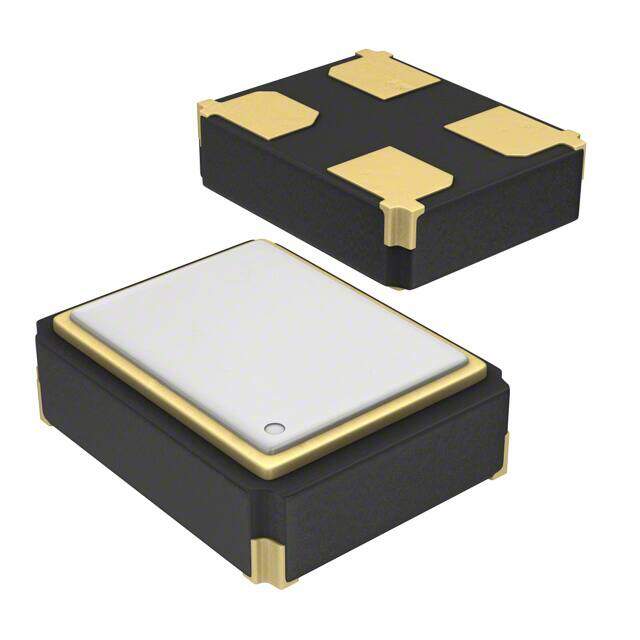

TC32N5I32K7680
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC XO 32.768KHZ CMOS SMD
PDF
/
Inventory: 1187
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.047 1.20mm
Technical
Symmetry-Max 55/45%
Fall Time-Max 50ns
Rise Time-Max 50ns
Operating Frequency 0.032768MHz
Physical Dimension 3.2mm x 2.5mm x 1.0mm
Current - Supply (Max) 3mA
Base Resonator Crystal
Function Enable/Disable
Output CMOS
Frequency Stability ±25ppm
Frequency 32.768kHz
Supply Voltage 2.5V
Voltage - Supply 2.5V
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Series TC32
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
