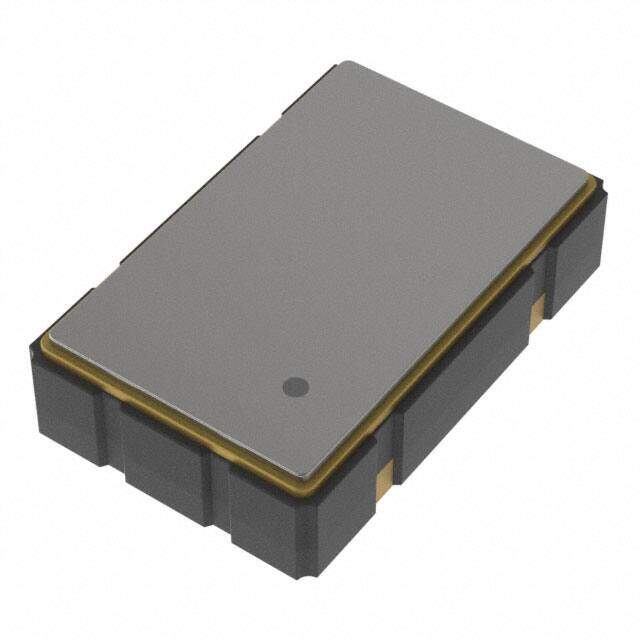

CA50C1202PLT image
Favorite
CA50C1202PLT image
Favorite
RoHS
RoHS RoHS compliant
Package 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description XTAL OSC XO 12.0MHZ 3.3V SMD
PDF
/
Inventory: 4172
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Surface Mount YES

Technical

Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Series CA50
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Type XO (Standard)
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Voltage - Supply 3.3V
Supply Voltage 3.3V
Frequency 12MHz
Frequency Stability ±100ppm
Output HCMOS, TTL
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 40mA
Physical Dimension 5.0mm x 3.2mm x 1.3mm
Operating Frequency 12MHz
Rise Time-Max 10ns
Fall Time-Max 10ns
Symmetry-Max 55/45%
Current - Supply (Disable) (Max) 10μA

Dimensions

Height Seated (Max) 0.051 1.30mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q200
