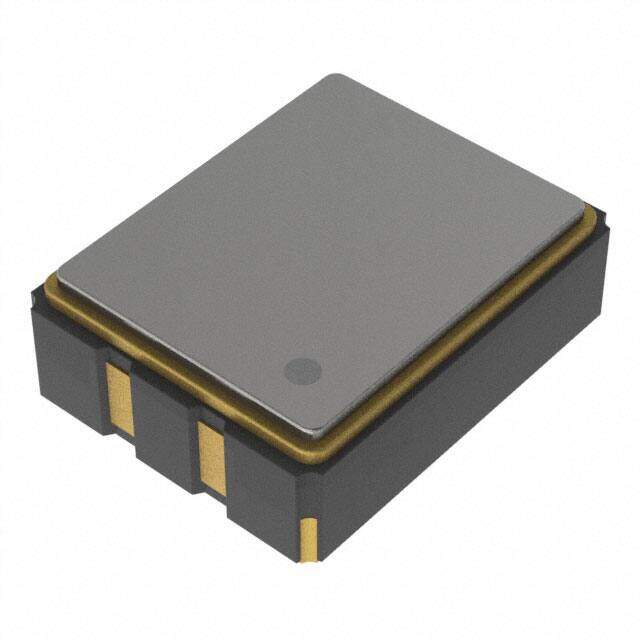

CA32C2503INT
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 25.0MHZ 2.5V SMD
PDF
/
Inventory: 7252
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Series CA32
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Type XO (Standard)
Voltage - Supply 2.5V
Supply Voltage 2.5V
Frequency 25MHz
Frequency Stability ±50ppm
Output HCMOS, TTL
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 40mA
Physical Dimension 3.2mm x 2.5mm x 1.2mm
Operating Frequency 25MHz
Rise Time-Max 7ns
Fall Time-Max 7ns
Symmetry-Max 55/45%
Current - Supply (Disable) (Max) 10μA
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Dimensions
Height Seated (Max) 0.047 1.20mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
Physical
Surface Mount YES
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
