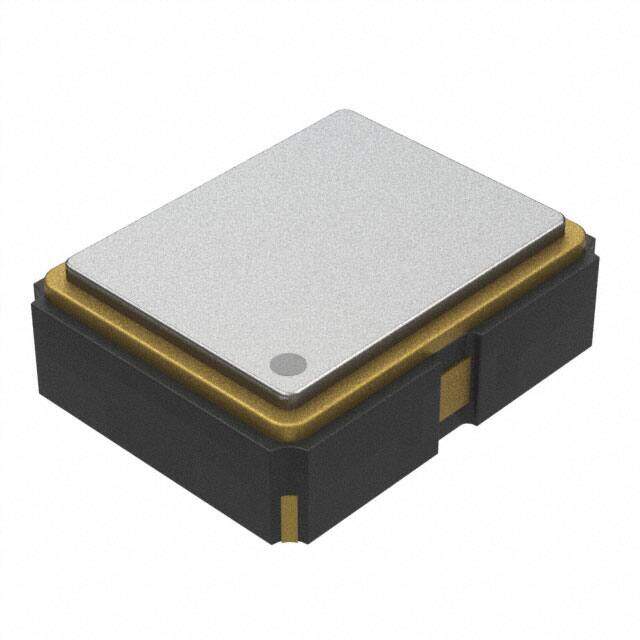

CA25C1002HMT image
Favorite
CA25C1002HMT image
Favorite
RoHS
RoHS RoHS compliant
Package 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description XTAL OSC XO 10.0MHZ 1.8V SMD
PDF
/
Inventory: 6743
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Surface Mount YES

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series CA25
Size / Dimension 0.098Lx0.079W 2.50mmx2.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Type XO (Standard)
Voltage - Supply 1.8V
Supply Voltage 1.8V
Frequency 10MHz
Frequency Stability ±100ppm
Output HCMOS, TTL
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 15mA
Physical Dimension 2.5mm x 2.0mm x 1.0mm
Operating Frequency 10MHz
Rise Time-Max 7ns
Fall Time-Max 7ns
Symmetry-Max 55/45%
Current - Supply (Disable) (Max) 10μA

Dimensions

Height Seated (Max) 0.039 1.00mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q200
