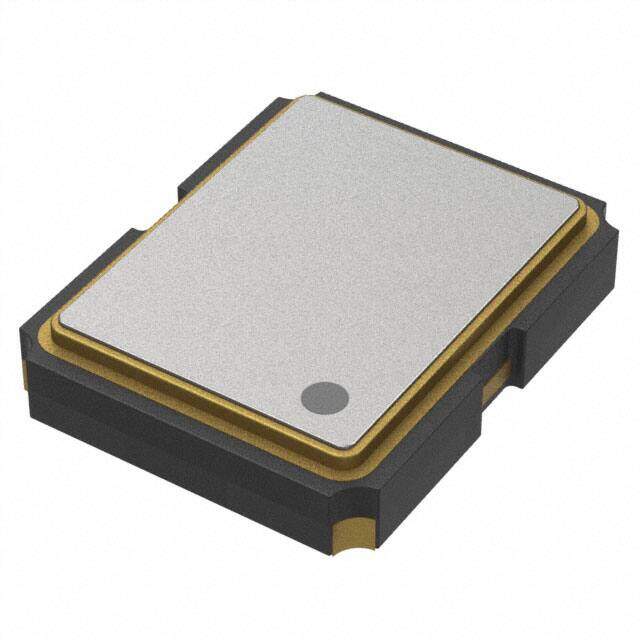

CA20C2007HNT
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC XO 20.0MHZ 2.5V SMD
PDF
/
Inventory: 9297
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.031 0.80mm
Technical
Current - Supply (Disable) (Max) 10μA
Symmetry-Max 55/45%
Fall Time-Max 7ns
Rise Time-Max 7ns
Operating Frequency 20MHz
Physical Dimension 2.0mm x 1.6mm x 0.8mm
Current - Supply (Max) 15mA
Base Resonator Crystal
Function Enable/Disable
Output HCMOS, TTL
Frequency Stability ±150ppm
Frequency 20MHz
Supply Voltage 2.5V
Voltage - Supply 2.5V
Type XO (Standard)
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Series CA20
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Surface Mount YES
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
