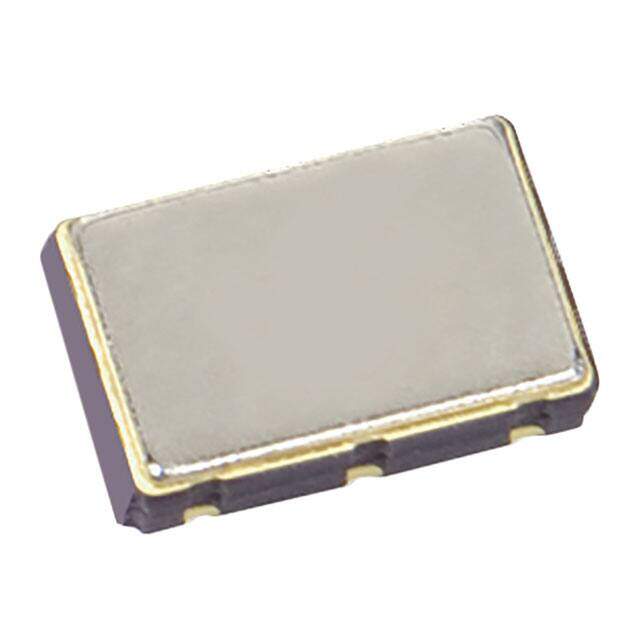

654L62203I2T
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Clock Oscillator 622.08MHz 2.5V 6-Pin SMD T/R
PDF
/
Inventory: 3448
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series 654L
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type XO (Standard)
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Voltage - Supply 2.5V
Supply Voltage 2.5V
Frequency 622.08MHz
Frequency Stability ±50ppm
Output LVDS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 23mA Typ
Physical Dimension 5.0mm x 3.2mm x 1.2mm
Operating Frequency 622.08MHz
Rise Time-Max 0.4ns
Fall Time-Max 0.4ns
Symmetry-Max 55/45%
Current - Supply (Disable) (Max) 20μA
Dimensions
Height Seated (Max) 0.051 1.30mm
Compliance
RoHS Status ROHS3 Compliant
