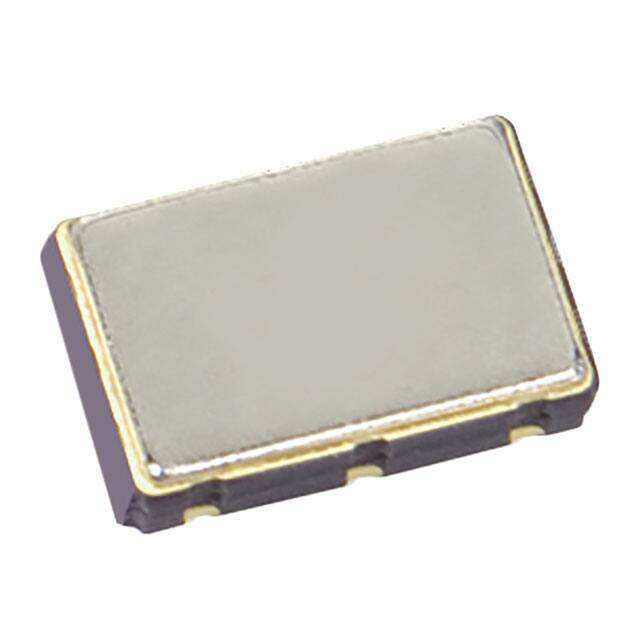

638E156J5C2T image
Favorite
638E156J5C2T image
Favorite
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description XTAL OSC XO 156.25875MHZ LVPECL
PDF
/
Inventory: 9139
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.079 2.00mm

Technical

Symmetry-Max 55/45%
Fall Time-Max 0.7ns
Rise Time-Max 0.7ns
Operating Frequency 156.25875MHz
Physical Dimension 7.0mm x 5.0mm x 2.0mm
Current - Supply (Max) 88mA
Base Resonator Crystal
Function Enable/Disable
Output LVPECL
Frequency Stability ±25ppm
Frequency 156.25875MHz
Supply Voltage 2.5V
Voltage - Supply 2.5V
Terminal Finish Gold Flash (Au) - with Nickel (Ni) barrier
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series 638
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C

Physical

Surface Mount YES
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
