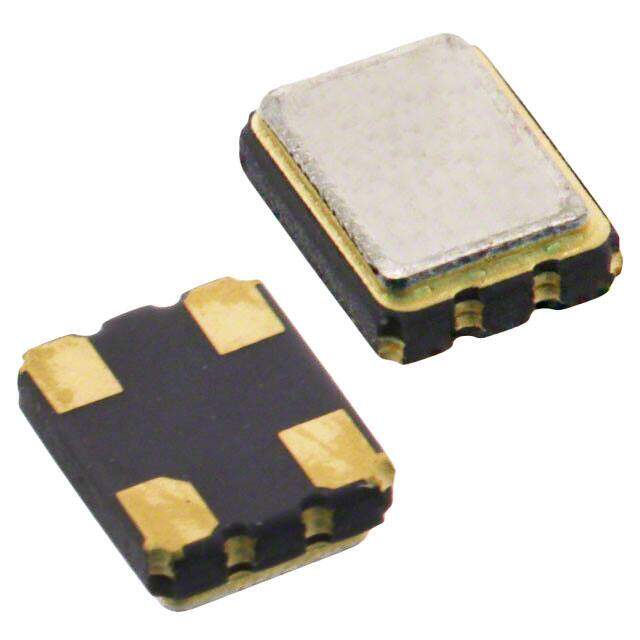

632L3C024M00000 image
Favorite
632L3C024M00000 image
Favorite

632L3C024M00000

CTS-Frequency Controls
RoHS
RoHS RoHS compliant
Package 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description Clock Oscillator 24MHz 3.3V 15pF 4-Pin SMD T/R
PDF
/
Inventory: 7073
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.047 1.20mm

Technical

Current - Supply (Disable) (Max) 15μA
Symmetry-Max 55/45%
Fall Time-Max 10ns
Rise Time-Max 10ns
Operating Frequency 24MHz
Physical Dimension 3.2mm x 2.5mm x 1.0mm
Current - Supply (Max) 15mA
Base Resonator Crystal
Function Enable/Disable
Output HCMOS
Frequency Stability ±50ppm
Frequency 24MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type XO (Standard)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Series 632
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C

Physical

Surface Mount YES
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
