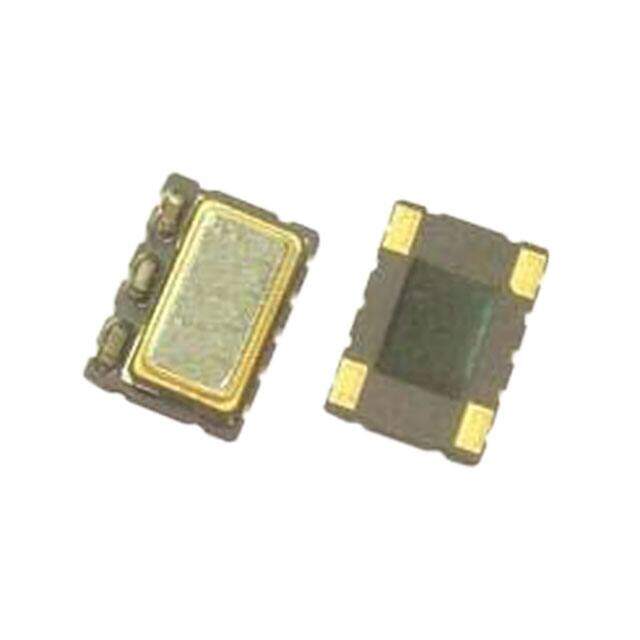

589S270X2CAT image
Favorite
589S270X2CAT image
Favorite
RoHS
RoHS RoHS compliant
Package 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description Controlled Oscillator 27MHz VC-TCXO HCMOS 4-Pin SMD T/R
PDF
/
Inventory: 6274
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.083 2.10mm

Technical

Control Voltage-Min 0.5V
Control Voltage-Max 2.5V
Symmetry-Max 55/45%
Fall Time-Max 6ns
Rise Time-Max 6ns
Operating Frequency 27MHz
Physical Dimension 7.0mm x 5.0mm x 2.1mm
Current - Supply (Max) 6mA
Base Resonator Crystal
Output HCMOS
Frequency Stability ±140ppb
Frequency 27MHz
Supply Voltage 5V
Voltage - Supply 5V
Additional Feature ENABLE/DISABLE FUNCTION; TR, 7 INCH
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type VCTCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e4
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series 589
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C

Physical

Surface Mount YES
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
