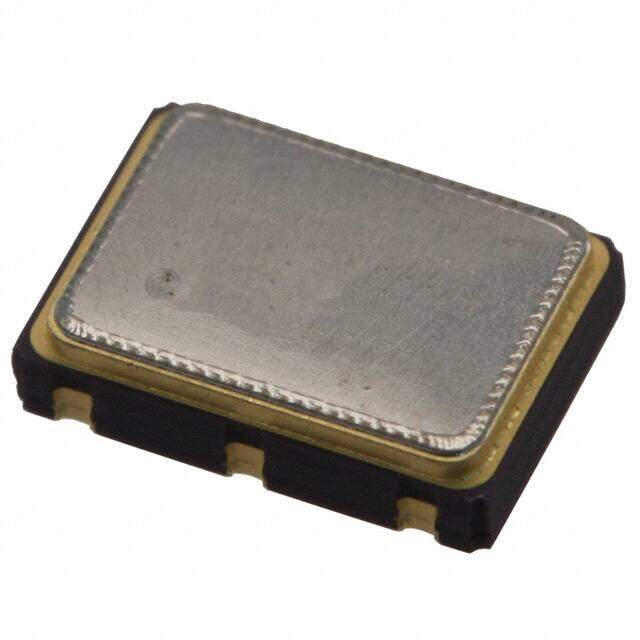

357LB3I001M5440
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC VCXO 1.544MHZ HCMOS TTL SMD
PDF
/
Buying Options
Total Price: USD $1.49
Unit Price: USD $1.492767
≥1 USD $1.492767
≥200 USD $0.577676
≥500 USD $0.557983
≥1000 USD $0.547479
Inventory: 5299
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.079 2.00mm
Technical
Control Voltage-Min 0.3V
Control Voltage-Max 3V
Linearity 10%
Symmetry-Max 55/45%
Fall Time-Max 5ns
Rise Time-Max 5ns
Operating Frequency 1.544MHz
Physical Dimension 7.0mm x 5.0mm x 2.0mm
Current - Supply (Max) 20mA
Base Resonator Crystal
Function Enable/Disable
Output HCMOS, TTL
Frequency Stability ±50ppm
Frequency 1.544MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type VCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series 357
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
