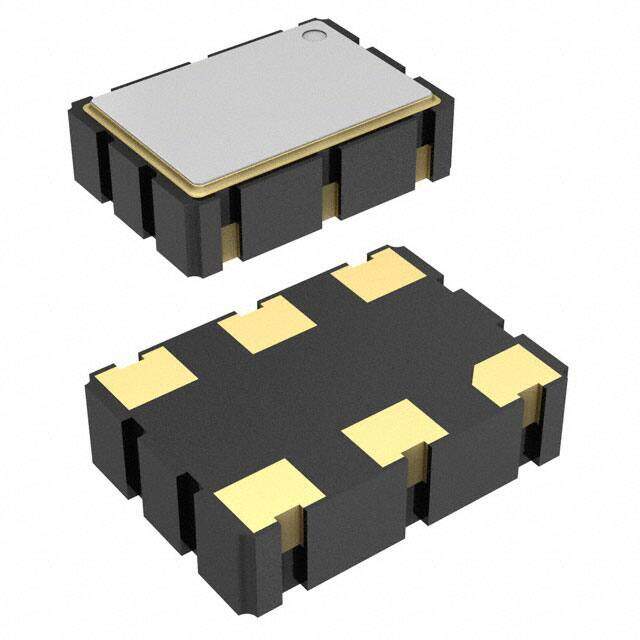

347LB5C1250T
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC VCXO 125.0000MHZ LVPECL
PDF
/
Buying Options
Total Price: USD $7.2
Unit Price: USD $7.201257
≥1 USD $7.201257
≥200 USD $2.787287
≥500 USD $2.688819
≥1000 USD $2.641555
Inventory: 7829
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.067 1.70mm
Technical
Absolute Pull Range (APR) ±50ppm
Control Voltage-Max 3.3V
Linearity 10%
Current - Supply (Disable) (Max) 10μA
Symmetry-Max 55/45%
Fall Time-Max 1ns
Rise Time-Max 1ns
Operating Frequency 125MHz
Physical Dimension 7.0mm x 5.0mm x 1.7mm
Current - Supply (Max) 80mA
Base Resonator Crystal
Function Enable/Disable
Output LVPECL
Frequency Stability ±25ppm
Frequency 125MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type VCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series 347
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C
Physical
Surface Mount YES
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 15 Weeks
