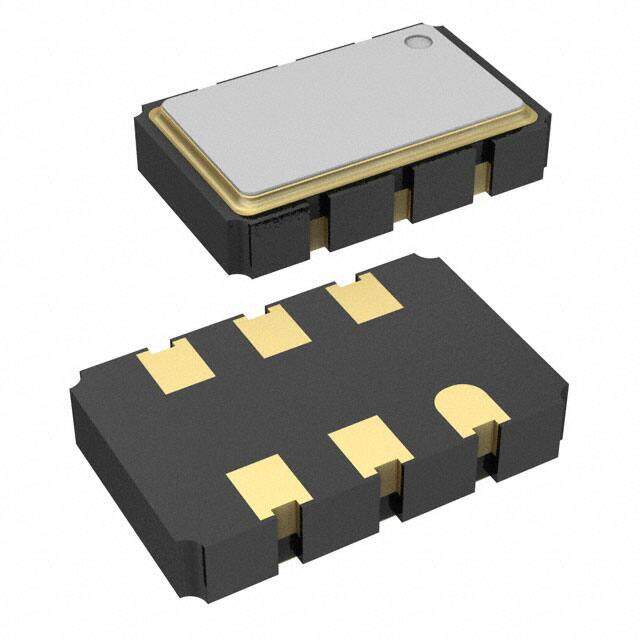

345LB3I1536T image
Favorite
345LB3I1536T image
Favorite
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description XTAL OSC VCXO 153.6000MHZ LVPECL
PDF
/
Inventory: 3368
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.051 1.30mm

Technical

Control Voltage-Max 3.3V
Linearity 10%
Current - Supply (Disable) (Max) 10μA
Symmetry-Max 55/45%
Fall Time-Max 1ns
Rise Time-Max 1ns
Operating Frequency 153.6MHz
Physical Dimension 7.0mm x 5.0mm x 1.7mm
Current - Supply (Max) 80mA
Base Resonator Crystal
Function Enable/Disable
Output LVPECL
Frequency Stability ±50ppm
Frequency 153.6MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type VCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
Series 345
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C

Physical

Surface Mount YES
Package / Case 6-SMD, No Lead
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
