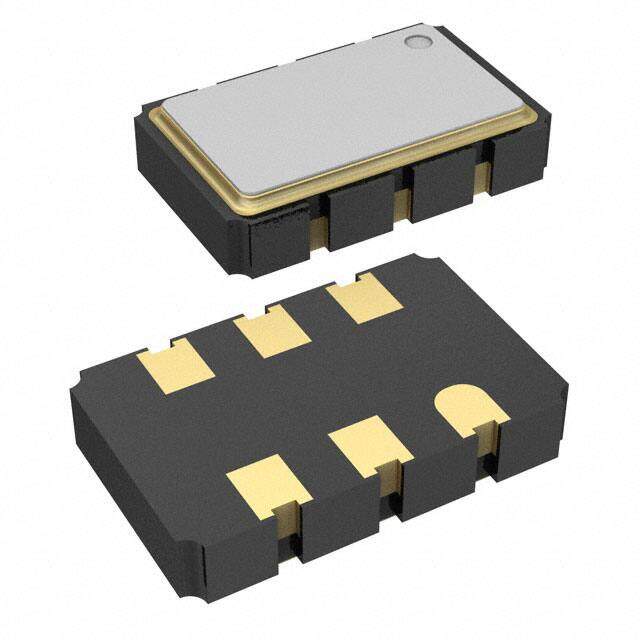

315LB5I1660T
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
XTAL OSC VCXO 166.0000MHZ HCMOS
PDF
/
Inventory: 4081
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2016
Series 315
Size / Dimension 0.197Lx0.126W 5.00mmx3.20mm
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type VCXO
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Voltage - Supply 3.3V
Supply Voltage 3.3V
Frequency 166MHz
Frequency Stability ±25ppm
Output HCMOS
Function Enable/Disable
Base Resonator Crystal
Current - Supply (Max) 30mA
Physical Dimension 7.0mm x 5.0mm x 2.0mm
Operating Frequency 166MHz
Rise Time-Max 3ns
Fall Time-Max 3ns
Symmetry-Max 55/45%
Current - Supply (Disable) (Max) 10μA
Linearity 10%
Control Voltage-Max 3V
Control Voltage-Min 0.3V
Absolute Pull Range (APR) ±50ppm
Dimensions
Height Seated (Max) 0.051 1.30mm
Compliance
RoHS Status ROHS3 Compliant
