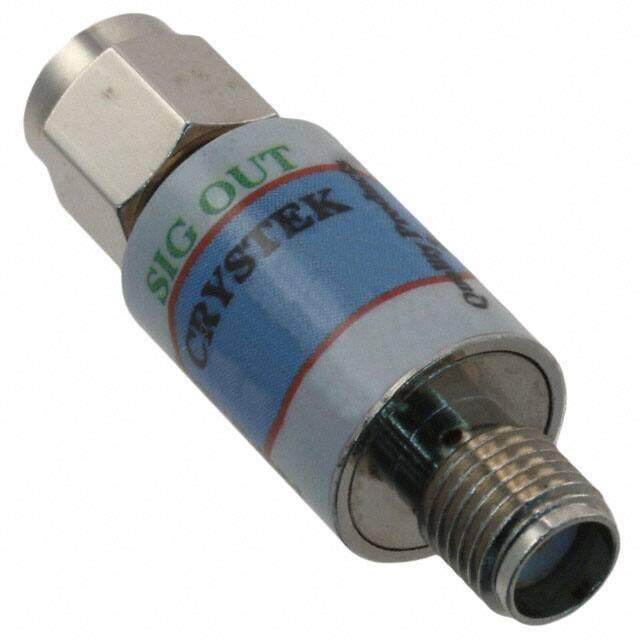

RFPRO33-1000.000
RoHS
RoHS compliant
RoHS compliantPackage Module Adapter, SMA M to F
Category Crystals, Oscillators, Resonators / Oscillators
Description
OSC SO 1.000GHZ SINE WAVE INLINE
PDF
/
Buying Options
Total Price: USD $76.23
Unit Price: USD $76.2256
≥1 USD $76.2256
Inventory: 52
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging
Package / Case Module Adapter, SMA M to F
Number of Pins 3
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Series RFPRO
Size / Dimension 0.435Diax1.312L 11.05mmx33.34mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type SO (SAW)
Max Operating Temperature 70°C
Min Operating Temperature -20°C
Voltage - Supply 3.3V
Frequency 1GHz
Frequency Stability -150ppm +100ppm
Output Sine Wave
Base Resonator Crystal
Current - Supply (Max) 25mA
Operating Supply Voltage 3.3V
Max Supply Current 25mA
Dimensions
Length 33.3248mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
