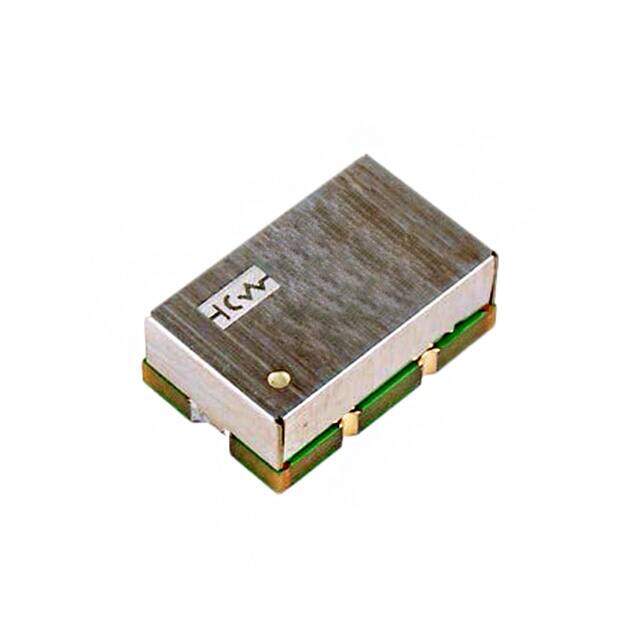

VBLD861-080.0M
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal RoHS Compliant Active LVCMOS crystal oscillator 55/45% -40C~85C 2ns 10%
PDF
/
Buying Options
Total Price: USD $19.99
Unit Price: USD $19.9936
≥1 USD $19.9936
≥10 USD $18.6648
≥100 USD $18.331456
Inventory: 250
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.202 5.13mm
Technical
Absolute Pull Range (APR) ±5ppm
Control Voltage-Min 0.3V
Control Voltage-Max 3V
Linearity 10%
Symmetry-Max 55/45%
Fall Time-Max 2ns
Rise Time-Max 2ns
Operating Frequency 80MHz
Physical Dimension 13.97mm x 9.02mm x 5.13mm
Current - Supply (Max) 30mA
Base Resonator Crystal
Output LVCMOS
Frequency Stability ±10ppm
Frequency 80MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type VCXO
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.550Lx0.355W 13.97mmx9.02mm
Series VBLD861
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
