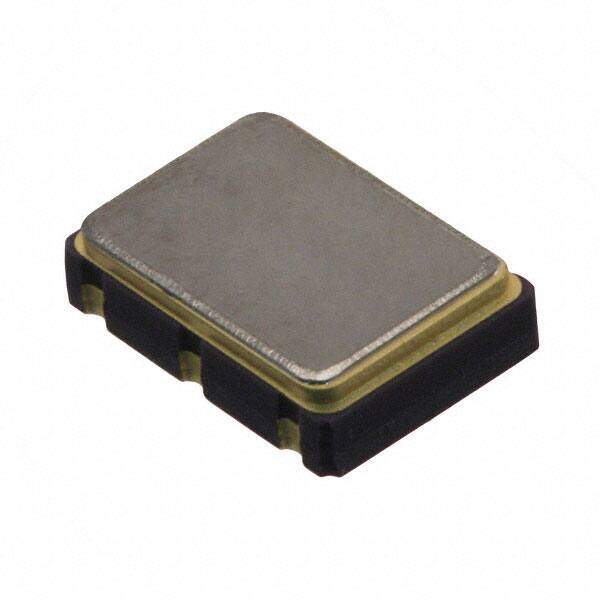

V803-100.0M image
Favorite
V803-100.0M image
Favorite

V803-100.0M

Connor-Winfield
RoHS
RoHS RoHS compliant
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description Crystal RoHS Compliant Enable/Disable Active Oscillator 55/45% 0C~70C 2ns 10%
PDF
/
Buying Options
Total Price: USD $21.98
Unit Price: USD $21.9824
≥1 USD $21.9824
≥10 USD $20.5128
≥100 USD $20.146544
≥500 USD $19.48716
Inventory: 138
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead

Technical

Operating Temperature 0°C~70°C
Packaging Strip
Series V803
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type VCXO
Voltage - Supply 3.3V
Supply Voltage 3.3V
Frequency 100MHz
Frequency Stability ±15ppm
Output LVCMOS
Function Enable/Disable
Base Resonator Crystal
Physical Dimension 7.0mm x 5.0mm x 1.8mm
Operating Frequency 100MHz
Rise Time-Max 2ns
Fall Time-Max 2ns
Symmetry-Max 55/45%
Max Supply Current 30mA
Linearity 10%
Control Voltage-Max 3V
Control Voltage-Min 0.3V
Absolute Pull Range (APR) ±50ppm

Dimensions

Height 1.8034mm
Height Seated (Max) 0.071 1.80mm

Compliance

RoHS Status RoHS Compliant
