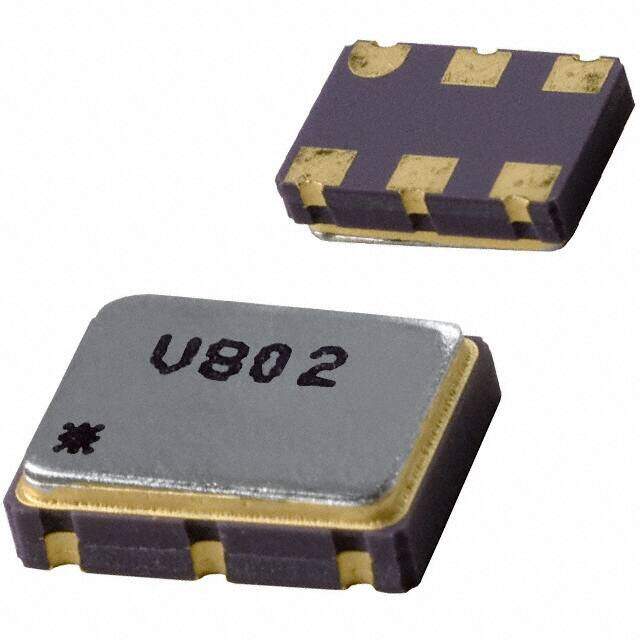

V802-100.0M image
Favorite
V802-100.0M image
Favorite

V802-100.0M

Connor-Winfield
RoHS
/
Package 6-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description Crystal RoHS Compliant Enable/Disable Obsolete crystal oscillator 55/45% 0C~70C 2ns 10%
PDF
/
Inventory: 4050
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height Seated (Max) 0.071 1.80mm
Height 1.8034mm

Technical

Control Voltage-Min 0.3V
Control Voltage-Max 3V
Linearity 10%
Max Supply Current 40mA
Symmetry-Max 55/45%
Fall Time-Max 2ns
Rise Time-Max 2ns
Operating Frequency 100MHz
Physical Dimension 7.0mm x 5.0mm x 1.8mm
Base Resonator Crystal
Function Enable/Disable
Output LVCMOS
Frequency Stability ±50ppm
Frequency 100MHz
Reach Compliance Code unknown
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type VCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series V802
Packaging Bulk
Operating Temperature 0°C~70°C

Physical

Package / Case 6-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
