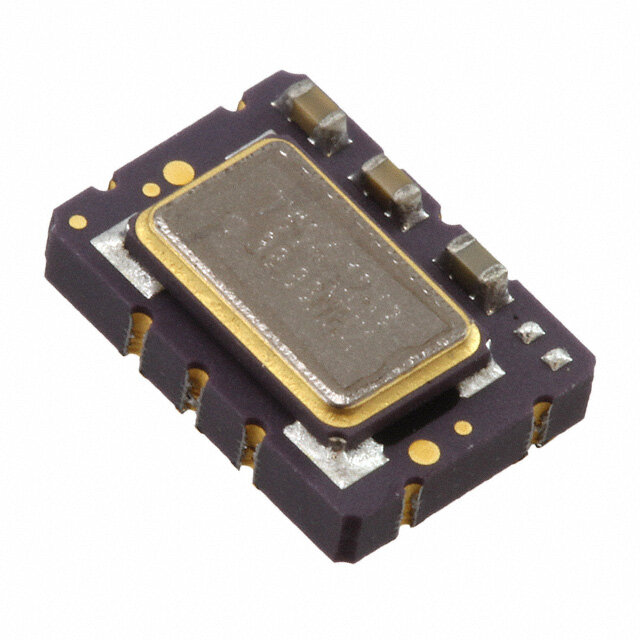

T604-010.0M
RoHS
RoHS compliant
RoHS compliantPackage 10-SMD, No Lead
Category Crystals, Oscillators, Resonators / Oscillators
Description
Crystal RoHS Compliant Enable/Disable Active Oscillator 55/45% -40C~85C 8ns 6mA
PDF
/
Buying Options
Total Price: USD $19.2
Unit Price: USD $19.2016
≥1 USD $19.2016
≥10 USD $17.91856
≥100 USD $17.59824
≥500 USD $17.02228
Inventory: 972
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.079 2.00mm
Height 2.0066mm
Technical
Control Voltage-Min 0.3V
Control Voltage-Max 3V
Max Supply Current 2.1mA
Symmetry-Max 55/45%
Fall Time-Max 8ns
Rise Time-Max 8ns
Operating Frequency 10MHz
Physical Dimension 7.0mm x 5.0mm x 2.0mm
Current - Supply (Max) 6mA
Base Resonator Crystal
Function Enable/Disable
Output LVCMOS
Frequency Stability ±280ppb
Frequency 10MHz
Supply Voltage 3.3V
Voltage - Supply 3.3V
Type VCTCXO
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 0.276Lx0.197W 7.00mmx5.00mm
Series T
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 10
Package / Case 10-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
